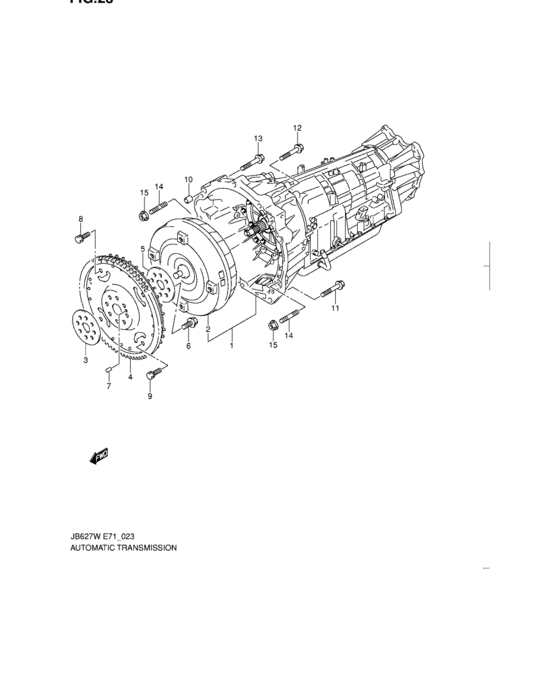

Automatic transmission (AUTOMATIC TRANSMISSION) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-64JV0-000
Transmission assy, automatic
06 MODEL |
21000-64JV0-000 |
— | ||
| replacements | |||||
|
1
|
1
21000-64JV0-REM
Automatic transmission assy
06 MODEL |
21000-64JV0-REM |
— | ||
|
1
|
1
21000-64JV2-000 T/M ASSY,AUTOMATIC06 MODEL |
21000-64JV2-000 |
US $7,172.40 |
||
|
1
|
1
21000-64JV1-000
Transmission assy, automatic
07 MODEL |
21000-64JV1-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64JV3-000 T/M ASSY,AUTOMATIC07 MODEL |
21000-64JV3-000 |
US $7,103.60 |
||
|
2
|
2
22700-54J10-000 CONVERTER,TORQUE |
22700-54J10-000 |
US $1,486.08 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-64J10-000 PLATE,TC DRIVE |
22620-64J10-000 |
US $520 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
04221-08129-000 PINPin, knock |
04221-08129-000 |
from US $0.91 |
||
|
8
|
8
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
US $19.10 |
||
|
9
|
9
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
12
|
12
01550-1265A-000 Bolt |
01550-1265A-000 |
US $24.70 |
||
|
13
|
13
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
14
|
14
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
14
|
14
09108-12012-000 BOLT,STUD |
09108-12012-000 |
US $2.72 |
||
|
15
|
15
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
16
|
16
24700-54JT0-000
OVERHAUL KIT,AT
NOT ILLUSTRATED |
24700-54JT0-000 |
— | ||
