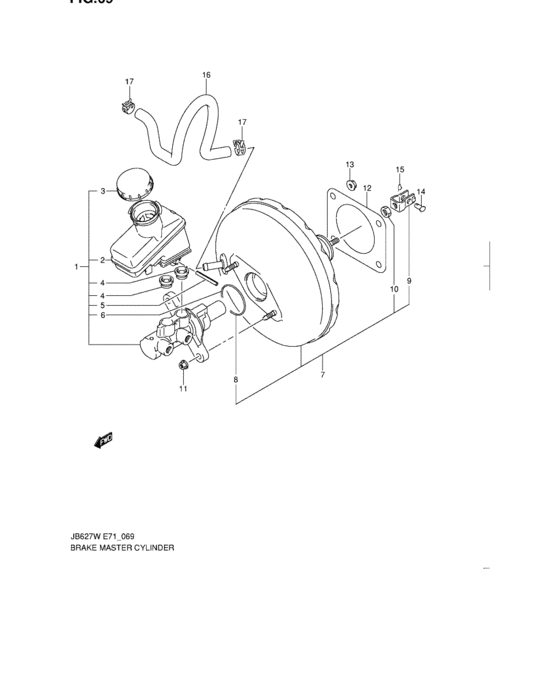

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-65JA0-000
CYLINDER ASSY,BRAKE MASTER
06 MODEL,07 MODEL:GL,GLS |
51100-65JA0-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-65JA1-000 CYLINDER ASSY,BRAKE MASTER06 MODEL,07 MODEL:GL,GLS |
51100-65JA1-000 |
US $436.80 |
||
|
1
|
1
51100-65JB0-000
CYLINDER ASSY,BRAKE MASTER
07 MODEL:GLS 4X4 |
51100-65JB0-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-65JB1-000 CYLINDER ASSY,BRAKE MASTER07 MODEL:GLS 4X4 |
51100-65JB1-000 |
from US $275.29 |
||
|
2
|
2
51200-65JA0-000
Reservoir assy,ma cylinder
|
51200-65JA0-000 |
— | ||
| replacement | |||||
|
2
|
2
51200-65JA1-000 RESERVOIR ASSY,BRAKE MASTER |
51200-65JA1-000 |
US $89.79 |
||
|
3
|
3
51220-54G00-000 CAP,RESERVOIR |
51220-54G00-000 |
US $21.60 |
||
|
4
|
4
51232-65J00-000 GROMMET,RSVR CONNECTOR |
51232-65J00-000 |
US $3.04 |
||
|
5
|
5
51233-65J00-000 PIN |
51233-65J00-000 |
US $1.98 |
||
|
6
|
6
51311-65J00-000 O-RING |
51311-65J00-000 |
US $11.56 |
||
|
7
|
7
51300-65J20-000 BOOSTER ASSY,BRAKE MASTER |
51300-65J20-000 |
US $512.30 |
||
|
8
|
8
51311-65J00-000 O-RING |
51311-65J00-000 |
US $11.56 |
||
|
9
|
9
51182-85520-000 CLEVIS,CYLINDER PUSH ROD |
51182-85520-000 |
US $10.27 |
||
|
10
|
10
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
11
|
11
51313-65J00-000 NUT |
51313-65J00-000 |
US $3.35 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
14
|
14
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
15
|
15
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $1.60 |
||
|
16
|
16
51020-66J00-000
HOSE,BRAKE VACUUM
|
51020-66J00-000 |
— | ||
|
17
|
17
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
