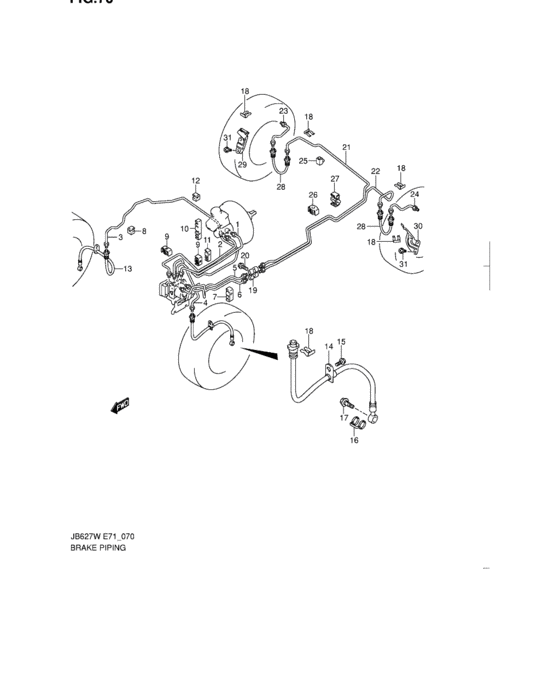

Brake piping (BRAKE PIPING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-65J20-000 PIPE,MA PRI TO UNIT06 MODEL,07 MODEL:GL,GLS |
51410-65J20-000 |
US $11.04 |
||
|
1
|
1
51410-65J30-000 PIPE,MA PRI TO UNIT07 MODEL:GLX 4X4 |
51410-65J30-000 |
US $19.50 |
||
|
2
|
2
51420-65J20-000
Pipe, ma secondary to unit
06 MODEL,07 MODEL:GL,GLS |
51420-65J20-000 |
— | ||
| replacement | |||||
|
2
|
2
51420-65J21-000 PIPE,MA SEC TO UNIT06 MODEL,07 MODEL:GL,GLS |
51420-65J21-000 |
US $11.11 |
||
|
2
|
2
51420-65J30-000
Pipe, ma secondary to unit
07 MODEL:GLX 4X4 |
51420-65J30-000 |
— | ||
| replacement | |||||
|
2
|
2
51420-65J31-000 PIPE,MA SEC TO UNIT07 MODEL:GLX 4X4 |
51420-65J31-000 |
US $16.67 |
||
|
3
|
3
51430-65J00-000
パイプ,ユニットツーフロントブレーキホース,ライト
06 MODEL,07 MODEL:GL,GLS |
51430-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
51430-65J02-000 PIPE,UNIT TO FR BK HOSE06 MODEL,07 MODEL:GL,GLS |
51430-65J02-000 |
US $36.25 |
||
|
3
|
3
51430-65J10-000
パイプ,ユニットツーフロントブレーキホース,ライト
07 MODEL:GLX 4X4 |
51430-65J10-000 |
— | ||
| replacement | |||||
|
3
|
3
51430-65J12-000
PIPE,UNIT TO FR BK HOSE R
07 MODEL:GLX 4X4 |
51430-65J12-000 |
— | ||
|
4
|
4
51440-65J00-000
パイプ,ユニットツーフロントブレーキホース,レフト
06 MODEL,07 MODEL:GL,GLS |
51440-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
51440-65J02-000 PIPE,UNIT TO FR BK HOSE L06 MODEL,07 MODEL:GL,GLS |
51440-65J02-000 |
US $11.67 |
||
|
4
|
4
51440-65J10-000
パイプ,ユニットツーフロントブレーキホース,レフト
07 MODEL:GLX 4X4 |
51440-65J10-000 |
— | ||
| replacement | |||||
|
4
|
4
51440-65J12-000 PIPE,UNIT TO FR BK HOSE L07 MODEL:GLX 4X4 |
51440-65J12-000 |
US $16.72 |
||
|
5
|
5
51450-65J00-000 PIPE,UNIT TO JOINT R06 MODEL,07 MODEL:GL,GLS |
51450-65J00-000 |
US $17 |
||
|
5
|
5
51450-65J10-000
PIPE,UNIT TO JOINT R
07 MODEL:GLX 4X4 |
51450-65J10-000 |
— | ||
|
6
|
6
51460-65J00-000 PIPE,UNIT TO JOINT L06 MODEL,07 MODEL:GL,GLS |
51460-65J00-000 |
US $16.85 |
||
|
6
|
6
51460-65J10-000
PIPE,UNIT TO JOINT L
07 MODEL:GLX 4X4 |
51460-65J10-000 |
— | ||
|
7
|
7
51751-65J40-000 CLAMP,BK PIPE FR SIDE |
51751-65J40-000 |
US $2.94 |
||
|
8
|
8
51751-65J50-000 CLAMP,BK PIPE FR SIDE |
51751-65J50-000 |
US $2.65 |
||
|
9
|
9
51751-75F00-000 CLAMP,BK PIPE MAIN FL DOUBLE |
51751-75F00-000 |
US $2.28 |
||
|
10
|
10
51751-65J60-000 CLAMP,BK PIPE FR SIDE06 MODEL:JS3TBarbadosV 64101819~,07 MODEL |
51751-65J60-000 |
US $3.86 |
||
|
11
|
11
51751-77E00-000 CLAMP,BRAKE PIPE06 MODEL:~JS3TBarbadosV 64101818 |
51751-77E00-000 |
US $2.24 |
||
|
12
|
12
51751-65J50-000 CLAMP,BK PIPE FR SIDE |
51751-65J50-000 |
US $2.65 |
||
|
13
|
13
51540-65J00-000 HOSE,FR BRAKE FLEXIBLE,R |
51540-65J00-000 |
from US $22.40 |
||
|
14
|
14
51550-65J00-000 HOSE,FR BRAKE FLEXIBLE,L |
51550-65J00-000 |
from US $22.40 |
||
|
15
|
15
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
16
|
16
51543-65J00-000
ガスケット,フレキシブルホース
|
51543-65J00-000 |
— | ||
| replacement | |||||
|
16
|
16
51543-65J01-000 GASKET,FLEXIBLE HOSE |
51543-65J01-000 |
from US $4.16 |
||
|
17
|
17
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
18
|
18
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
19
|
19
51630-82040-000 JOINT,4WAY BRAKE |
51630-82040-000 |
US $24 |
||
|
20
|
20
02162-0630A-000 SCREW |
02162-0630A-000 |
from US $2.82 |
||
|
21
|
21
51470-65J00-000
パイプ,ジョイントツーリヤブレーキホース,ライト
|
51470-65J00-000 |
— | ||
| replacement | |||||
|
21
|
21
51470-65J02-000 PIPE,JOINT TO RR BK HOSE R |
51470-65J02-000 |
US $45.26 |
||
|
22
|
22
51480-65J00-000
パイプ,ジョイントツーリヤブレーキホース,レフト
|
51480-65J00-000 |
— | ||
| replacement | |||||
|
22
|
22
51480-65J01-000 PIPE,JOINT TO RR BK HOSE L |
51480-65J01-000 |
US $39.01 |
||
|
23
|
23
51510-65J00-000 PIPE,RR BK HOSE TO WHL CYL RH |
51510-65J00-000 |
US $8.32 |
||
|
24
|
24
51520-65J00-000 PIPE,RR BK HOSE TO WHL CYL LH |
51520-65J00-000 |
from US $7.16 |
||
|
25
|
25
51751-65J00-000 CLAMP,BK PIPE RR FL |
51751-65J00-000 |
US $3.24 |
||
|
26
|
26
51751-76G00-000 CLAMP,BK PIPE DASH |
51751-76G00-000 |
US $1.60 |
||
|
27
|
27
51761-62J20-000 CLAMP,BK PIPE 2 ON FRAME |
51761-62J20-000 |
US $1.92 |
||
|
28
|
28
51570-65J00-000 HOSE,RR BRAKE FLEXIBLE |
51570-65J00-000 |
from US $14.40 |
||
|
29
|
29
51713-65J00-000 BRACKET,RR BK HOSE,R |
51713-65J00-000 |
US $6.15 |
||
|
30
|
30
51714-65J00-000 BRACKET,RR BK HOSE,L |
51714-65J00-000 |
US $6.15 |
||
|
31
|
31
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
