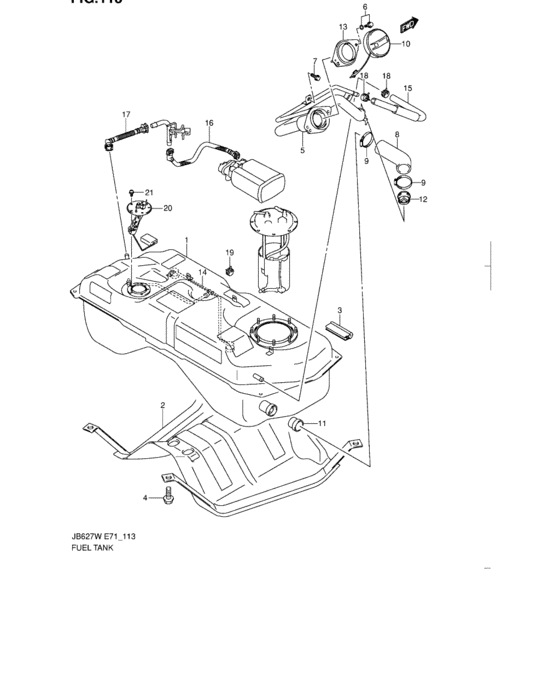

Fuel tank (FUEL TANK) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-66J01-000
Tank assy, fuel
06 MODEL |
89101-66J01-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-66810-000 TANK ASSY,FUEL06 MODEL |
89101-66810-000 |
US $605.44 |
||
|
1
|
1
89101-66J02-000
Tank assy, fuel
07 MODEL |
89101-66J02-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-66821-000
TANK ASSY,FUEL
07 MODEL |
89101-66821-000 |
— | ||
|
2
|
2
89190-65J00-000 PROTECTOR,FUEL TANK |
89190-65J00-000 |
US $253.92 |
||
|
3
|
3
89445-65J00-000
Protector,fuel tank flange
|
89445-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
89445-60G00-000 PROTECTOR,TANK FLANGE |
89445-60G00-000 |
US $6.48 |
||
|
4
|
4
09118-10073-000 BOLT(10X30) |
09118-10073-000 |
US $1.44 |
||
|
5
|
5
89201-66J00-000
NECK ASSY,FUEL FILLER
|
89201-66J00-000 |
— | ||
|
6
|
6
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
09103-06265-000 BOLT(6X12) |
09103-06265-000 |
US $1.28 |
||
|
8
|
8
89241-66J00-000
HOSE,FUEL TANK FILLER
|
89241-66J00-000 |
— | ||
|
9
|
9
09402-50512-000 CLAMP |
09402-50512-000 |
US $46.40 |
||
|
10
|
10
89260-65GA0-000
Cap assy, fuel filler
|
89260-65GA0-000 |
— | ||
| replacement | |||||
|
10
|
10
89260-65GA2-000
CAP ASSY,FUEL FILLER
|
89260-65GA2-000 |
— | ||
|
11
|
11
89270-75F00-000 VALVE,FUEL TANK INLET |
89270-75F00-000 |
US $7.90 |
||
|
12
|
12
89280-52D00-000
VALVE,FUEL TANK INLET
|
89280-52D00-000 |
— | ||
|
13
|
13
89285-58J00-000 PACKING,FUEL FILLER |
89285-58J00-000 |
US $6.24 |
||
|
14
|
14
89401-66J00-000
Valve assy,vapor control
|
89401-66J00-000 |
— | ||
|
15
|
15
89440-66J00-000
HOSE,FUEL RECIRCULATION
|
89440-66J00-000 |
— | ||
|
16
|
16
89462-66J00-000 HOSE,PIPE TO CSTR06 MODEL |
89462-66J00-000 |
US $80.22 |
||
|
16
|
16
89462-66J01-000
HOSE,PIPE TO CSTR
07 MODEL |
89462-66J01-000 |
— | ||
|
17
|
17
89461-66J00-000
HOSE,TANK TO PIPE
|
89461-66J00-000 |
— | ||
|
18
|
18
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-22405-000 CLIP~JSAJTBarbadosV00100010 |
09401-22405-000 |
US $20.20 |
||
|
20
|
20
34810-65J20-000
GAUGE ASSY,FUEL LEVEL
|
34810-65J20-000 |
— | ||
|
21
|
21
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
