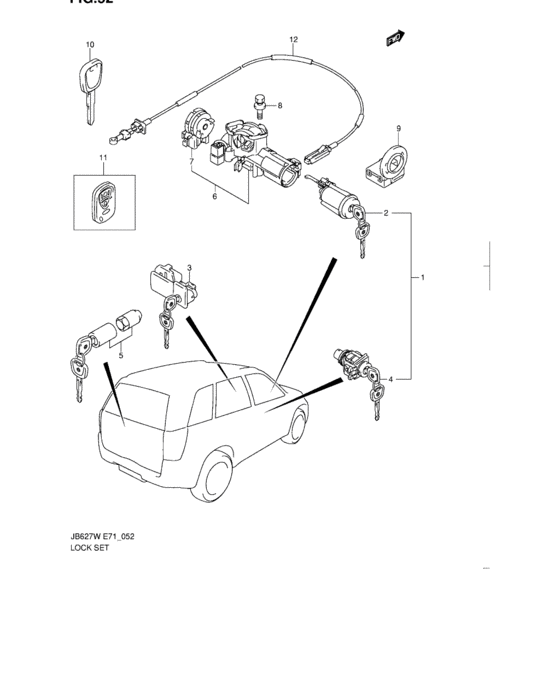

Lock set (LOCK SET) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37108-63860-5PK
Lock set
|
37108-63860-5PK |
— | ||
| replacement | |||||
|
1
|
1
37109-64821-5PK LOCK SET |
37109-64821-5PK |
US $263.12 |
||
|
1
|
1
37108-63860-R8H
Lock set
|
37108-63860-R8H |
— | ||
| replacement | |||||
|
1
|
1
37109-64821-R8H
LOCK SET
|
37109-64821-R8H |
— | ||
|
2
|
2
37106-63890-000 LOCK ASSY,STEERING |
37106-63890-000 |
US $172.22 |
||
|
3
|
3
73430-65810-5PK
ロック,グローブボックス(ブラック)
|
73430-65810-5PK |
— | ||
| replacement | |||||
|
3
|
3
73430-65820-5PK LOCK,GLV BOX |
73430-65820-5PK |
from US $72.43 |
||
|
3
|
3
73430-65810-R8H
Lock, glove box
|
73430-65810-R8H |
— | ||
| replacement | |||||
|
3
|
3
73430-65820-R8H LOCK,GLV BOX |
73430-65820-R8H |
US $82.15 |
||
|
4
|
4
82280-65820-000 CYLINDER,FR DR LATCH,L |
82280-65820-000 |
US $58.88 |
||
|
5
|
5
83900-76820-000 KEY ASSY,SPARE TIRE NUT LOCK |
83900-76820-000 |
US $88.36 |
||
|
6
|
6
37101-62J20-000 BODY,STEERING LOCK |
37101-62J20-000 |
US $110.40 |
||
|
7
|
7
37111-58J00-000 Ignition switch |
37111-58J00-000 |
from US $45.47 |
||
|
8
|
8
37152-84G00-000 BOLT, STRG LOCK |
37152-84G00-000 |
from US $2.98 |
||
|
9
|
9
33970-65J00-000 CONTROLLER ASSY,IMM W/ILLUMI |
33970-65J00-000 |
US $268.64 |
||
|
10
|
10
37145-57J10-000 KEY,BLANK IMMOBILIZER |
37145-57J10-000 |
US $41.95 |
||
|
11
|
11
37180-64J00-000
SWITCH ASSY,TRANSMITTER
|
37180-64J00-000 |
— | ||
|
12
|
12
28551-64J10-000
Cable, key interlocking
|
28551-64J10-000 |
— | ||
| replacement | |||||
|
12
|
12
28551-64J11-000
CABLE,KEY INTER LOCK
|
28551-64J11-000 |
— | ||
