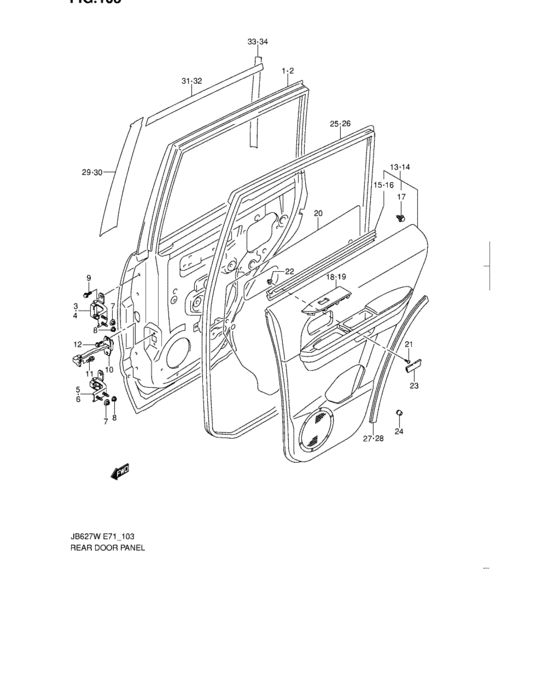

Rear door panel (REAR DOOR PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-65831-000
パネルアッシ,リヤドア,ライト
|
68003-65831-000 |
— | ||
| replacement | |||||
|
1
|
1
68003-65833-000 PANEL SET,RR DR,R |
68003-65833-000 |
from US $559.49 |
||
|
2
|
2
68004-65831-000
パネルアッシ,リヤドア,レフト
|
68004-65831-000 |
— | ||
| replacement | |||||
|
2
|
2
68004-65833-000 PANEL SET,RR DR,L |
68004-65833-000 |
US $591.36 |
||
|
3
|
3
69410-63J00-000 HINGE,RR DR UPR,R |
69410-63J00-000 |
from US $32.57 |
||
|
4
|
4
69420-63J00-000 HINGE,RR DR UPR,L |
69420-63J00-000 |
from US $29.43 |
||
|
5
|
5
69430-63J00-000 HINGE,RR DR LWR,R |
69430-63J00-000 |
from US $30.40 |
||
|
6
|
6
69440-63J00-000 HINGE,RR DR LWR,L |
69440-63J00-000 |
from US $32.57 |
||
|
7
|
7
09159-08132-000 NUT |
09159-08132-000 |
US $14.40 |
||
|
8
|
8
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
9
|
9
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
10
|
10
81830-65J00-000
ストップ,リヤドアオープン
|
81830-65J00-000 |
— | ||
| replacement | |||||
|
10
|
10
81830-65J02-000 STOP,REAR DOOR OPEN |
81830-65J02-000 |
from US $41.49 |
||
|
11
|
11
09112-08004-000 BOLT(8X25) |
09112-08004-000 |
US $1.22 |
||
|
12
|
12
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
13
|
13
83730-65J00-CAW
トリム,リヤドア,ライト
|
83730-65J00-CAW |
— | ||
| replacements | |||||
|
13
|
13
83730-65J02-FWH
TRIM,RR DR,R
|
83730-65J02-FWH |
— | ||
|
13
|
13
83730-65J03-FWH TRIM,RR DR,R |
83730-65J03-FWH |
US $450.56 |
||
|
13
|
13
83730-65J00-CBW
Trim,rear door,r
|
83730-65J00-CBW |
— | ||
| replacement | |||||
|
13
|
13
83730-65J03-CBW TRIM,RR DR,R |
83730-65J03-CBW |
US $524.48 |
||
|
13
|
13
83730-65J00-CBY
Trim,rear door,r
|
83730-65J00-CBY |
— | ||
| replacements | |||||
|
13
|
13
83730-65J02-CBY
TRIM,RR DR,R
|
83730-65J02-CBY |
— | ||
|
13
|
13
83730-65J03-CBY TRIM,RR DR,R |
83730-65J03-CBY |
US $524.48 |
||
|
14
|
14
83740-65J00-CAW
トリム,リヤドア,レフト
|
83740-65J00-CAW |
— | ||
| replacements | |||||
|
14
|
14
83740-65J02-FWH
TRIM,RR DR,L
|
83740-65J02-FWH |
— | ||
|
14
|
14
83740-65J03-FWH TRIM,RR DR,L |
83740-65J03-FWH |
US $450.56 |
||
|
14
|
14
83740-65J00-CBW
Trim,rear door,l
|
83740-65J00-CBW |
— | ||
| replacements | |||||
|
14
|
14
83740-65J02-CBW
TRIM,RR DR,L
|
83740-65J02-CBW |
— | ||
|
14
|
14
83740-65J03-CBW TRIM,RR DR,L |
83740-65J03-CBW |
US $577.28 |
||
|
14
|
14
83740-65J00-CBY
Trim,rear door,l
|
83740-65J00-CBY |
— | ||
| replacements | |||||
|
14
|
14
83740-65J02-CBY
TRIM,RR DR,L
|
83740-65J02-CBY |
— | ||
|
14
|
14
83740-65J03-CBY TRIM,RR DR,L |
83740-65J03-CBY |
US $524.48 |
||
|
15
|
15
83739-65J00-000 WEATHERSTRIP,RR DR INR,R |
83739-65J00-000 |
US $39.20 |
||
|
16
|
16
83749-65J00-000 WEATHERSTRIP,RR DR INR,L |
83749-65J00-000 |
US $39.20 |
||
|
17
|
17
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
18
|
18
83737-65J00-5PK BEZEL,P/W SWITCH RR,R |
83737-65J00-5PK |
US $41.60 |
||
|
18
|
18
83737-65J00-R9S BEZEL,P/W SWITCH RR,R |
83737-65J00-R9S |
US $61.46 |
||
|
19
|
19
83747-65J00-5PK BEZEL,P/W SWITCH RR,L |
83747-65J00-5PK |
US $41.60 |
||
|
19
|
19
83747-65J00-R9S BEZEL,P/W SWITCH RR,L |
83747-65J00-R9S |
US $61.46 |
||
|
20
|
20
83913-65J00-000 COVER,RR DR SEALING |
83913-65J00-000 |
US $5.12 |
||
|
21
|
21
03241-0616A-000 SCREW |
03241-0616A-000 |
US $7.70 |
||
|
22
|
22
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
23
|
23
83715-65J00-5PK CAP,DR TRIM,R |
83715-65J00-5PK |
US $1.98 |
||
|
23
|
23
83715-65J00-R8H CAP,DR TRIM,R |
83715-65J00-R8H |
US $3.90 |
||
|
24
|
24
82711-65J00-000 CUSHION |
82711-65J00-000 |
from US $1.51 |
||
|
25
|
25
84661-65J00-000 WEATHERSTRIP,RR DR OPNG,R |
84661-65J00-000 |
from US $85.32 |
||
|
26
|
26
84671-65J00-000 WEATHERSTRIP,RR DR OPNG,L |
84671-65J00-000 |
from US $87.44 |
||
|
27
|
27
84662-65J02-000
ウェザストリップ,リヤドアダスト,ライト
|
84662-65J02-000 |
— | ||
| replacement | |||||
|
27
|
27
84662-65J04-000 WEATHERSTRIP,RR DR DUST,R |
84662-65J04-000 |
from US $46.40 |
||
|
28
|
28
84672-65J02-000
ウェザストリップ,リヤドアダスト,レフト
|
84672-65J02-000 |
— | ||
| replacement | |||||
|
28
|
28
84672-65J04-000 WEATHERSTRIP,RR DR DUST,L |
84672-65J04-000 |
from US $46.40 |
||
|
29
|
29
83927-65J00-0CB
Tape,rear door sash pillar,r
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83927-65J00-0CB |
— | ||
| replacement | |||||
|
29
|
29
83927-65J10-0CB TAPE,RR DOOR SASH PLR,R06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83927-65J10-0CB |
from US $27 |
||
|
29
|
29
83927-65J01-0CB
Tape,rr sash pillar,r(black)
07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83927-65J01-0CB |
— | ||
| replacement | |||||
|
29
|
29
83927-65J10-0CB TAPE,RR DOOR SASH PLR,R07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83927-65J10-0CB |
from US $27 |
||
|
30
|
30
83928-65J00-0CB
Tape,rear door sash pillar,l
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83928-65J00-0CB |
— | ||
| replacement | |||||
|
30
|
30
83928-65J10-0CB TAPE,RR DOOR SASH PLR,L06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83928-65J10-0CB |
from US $22.32 |
||
|
30
|
30
83928-65J01-0CB
Tape,rr sash pillar,l(black)
07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83928-65J01-0CB |
— | ||
| replacement | |||||
|
30
|
30
83928-65J10-0CB TAPE,RR DOOR SASH PLR,L07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83928-65J10-0CB |
from US $22.32 |
||
|
31
|
31
83915-65J00-0CB
Tape,rear door sash roof,r
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83915-65J00-0CB |
— | ||
| replacement | |||||
|
31
|
31
83915-65J01-0CB TAPE,RR SASH ROOF,R06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83915-65J01-0CB |
from US $23.06 |
||
|
31
|
31
83915-65J01-0CB TAPE,RR SASH ROOF,R07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83915-65J01-0CB |
from US $23.06 |
||
|
32
|
32
83916-65J00-0CB
Tape,rear door sash roof,l
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83916-65J00-0CB |
— | ||
| replacement | |||||
|
32
|
32
83916-65J01-0CB TAPE,RR SASH ROOF,L06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83916-65J01-0CB |
from US $6.64 |
||
|
32
|
32
83916-65J01-0CB TAPE,RR SASH ROOF,L07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83916-65J01-0CB |
from US $6.64 |
||
|
33
|
33
83917-65J00-0CB
Tape,rear door sash c-pillar,r
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83917-65J00-0CB |
— | ||
| replacement | |||||
|
33
|
33
83917-65J01-0CB TAPE,RR DR SASH C-PLR,R06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83917-65J01-0CB |
from US $19.80 |
||
|
33
|
33
83917-65J01-0CB TAPE,RR DR SASH C-PLR,R07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83917-65J01-0CB |
from US $19.80 |
||
|
34
|
34
83918-65J00-0CB
Tape,rear door sash c-pillar,l
06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83918-65J00-0CB |
— | ||
| replacement | |||||
|
34
|
34
83918-65J01-0CB TAPE,RR DR SASH C-PLR,L06 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z9T |
83918-65J01-0CB |
from US $17.96 |
||
|
34
|
34
83918-65J01-0CB TAPE,RR DR SASH C-PLR,L07 MODEL,BODY COLOR:ZA5,ZCW,ZDK,ZDL,ZY4,,ZY8,Z2S,Z7T,Z9T |
83918-65J01-0CB |
from US $17.96 |
||
