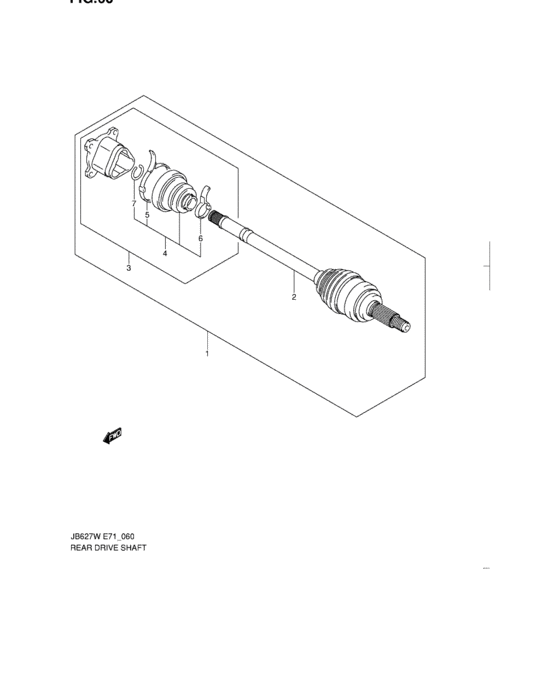

Rear drive shaft (REAR DRIVE SHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44105-65J10-000
シャフトアッシ,リヤドライブ
4WD |
44105-65J10-000 |
— | ||
| replacement | |||||
|
1
|
1
44105-79K10-000 SHAFT ASSY,REAR DRIVE4WD |
44105-79K10-000 |
US $760.32 |
||
|
2
|
2
44119-65J10-000
Joint assy,wheel side
4WD |
44119-65J10-000 |
— | ||
| replacement | |||||
|
2
|
2
44119-65J11-000 JOINT ASSY,WHL SIDE4WD |
44119-65J11-000 |
from US $385.27 |
||
|
3
|
3
44116-65J10-000
Joint assy,diff side
4WD |
44116-65J10-000 |
— | ||
| replacement | |||||
|
3
|
3
44116-65J11-000 JOINT ASSY,DIFF SIDE4WD |
44116-65J11-000 |
US $513.92 |
||
|
4
|
4
44127-65J00-000
Boot set,diff side
|
44127-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
44127-65J01-000 BOOT SET,DIFF SIDE |
44127-65J01-000 |
US $90.53 |
||
|
5
|
5
44122-65J00-000 CLAMP,BOOT |
44122-65J00-000 |
US $7.91 |
||
|
6
|
6
44124-65J00-000
CLAMP,BOOT
|
44124-65J00-000 |
— | ||
|
7
|
7
44112-65J00-000
CIRCLIP
|
44112-65J00-000 |
— | ||
