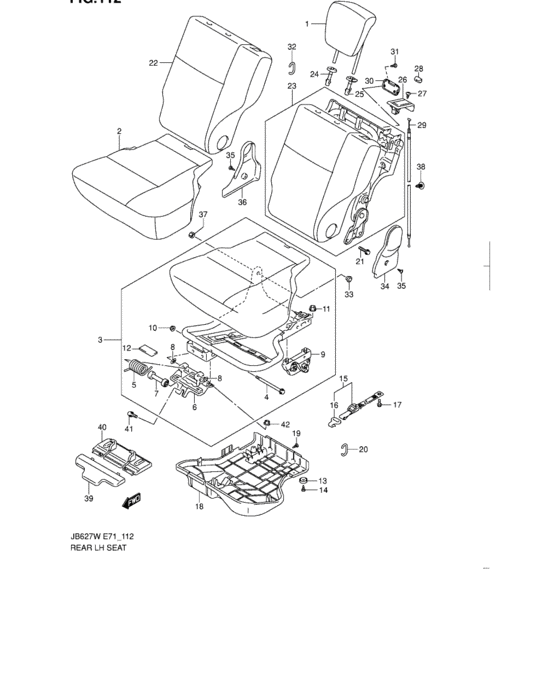

Rear lh seat (REAR LH SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J20-NL5
Headrestraint assy
FABRIC |
86401-66J20-NL5 |
— | ||
| replacements | |||||
|
1
|
1
86401-66J21-NL5
HEADRESTRAINT,RR
FABRIC |
86401-66J21-NL5 |
— | ||
|
1
|
1
86401-66J22-NL5 Headrestraint,rrFABRIC |
86401-66J22-NL5 |
US $126.96 |
||
|
1
|
1
86401-66J20-T6U
Headrestraint assy
LEATHER |
86401-66J20-T6U |
— | ||
| replacement | |||||
|
1
|
1
86401-76K20-T6U HEADRESTRAINT ASSYLEATHER |
86401-76K20-T6U |
US $126.96 |
||
|
1
|
1
86401-66J20-S1K
Headrestraint assy
LEATHER |
86401-66J20-S1K |
— | ||
| replacement | |||||
|
1
|
1
86401-76K20-S1K HEADRESTRAINT ASSYLEATHER |
86401-76K20-S1K |
US $126.96 |
||
|
2
|
2
87680-66J00-DBT
TRIM,RR CUSHION,L
FABRIC:06 MODEL |
87680-66J00-DBT |
— | ||
|
2
|
2
87680-66J01-DBT
TRIM,RR CUSHION,L
FABRIC:07 MODEL |
87680-66J01-DBT |
— | ||
| replacement | |||||
|
2
|
2
87680-66J03-DBT
Trim,rr Cushion,l
FABRIC:07 MODEL |
87680-66J03-DBT |
— | ||
|
2
|
2
87680-66J00-BFL
Trim,rr cush,l(black)
LEATHER:06 MDOEL |
87680-66J00-BFL |
— | ||
|
2
|
2
87680-66J01-BFL
Trim comp,rr cush,l
LEATHER:07 MDOEL |
87680-66J01-BFL |
— | ||
| replacement | |||||
|
2
|
2
87680-66J02-BFL
TRIM COMP,RR CUSH,L
LEATHER:07 MDOEL |
87680-66J02-BFL |
— | ||
|
2
|
2
87680-66J00-BFP
Trim,rr cush,l(beige)
LEATHER:06 MODEL |
87680-66J00-BFP |
— | ||
|
2
|
2
87680-66J01-BFP
TRIM,RR CUSHION,L(BEIGE)
LEATHER:07 MODEL |
87680-66J01-BFP |
— | ||
|
3
|
3
87106-66J00-000
CUSHION S/ASSY,RR,L
06 MODEL |
87106-66J00-000 |
— | ||
|
3
|
3
87106-66J01-000 CUSHION S/ASSY,RR,L07 MODEL |
87106-66J01-000 |
US $351.44 |
||
|
4
|
4
87153-63J00-000
ボルト,リヤクッションレッグ
06 MODEL |
87153-63J00-000 |
— | ||
| replacement | |||||
|
4
|
4
87153-63J01-000 BOLT,RR CUSH LEG06 MODEL |
87153-63J01-000 |
US $13.73 |
||
|
4
|
4
87153-63J01-000 BOLT,RR CUSH LEG07 MODEL |
87153-63J01-000 |
US $13.73 |
||
|
5
|
5
87148-66J00-000
SPRING,RR CUSH LEG
|
87148-66J00-000 |
— | ||
|
6
|
6
87150-66J10-000 LEG,RR CUSH |
87150-66J10-000 |
US $33.44 |
||
|
7
|
7
87149-66J00-000
COLLAR,SPRING
|
87149-66J00-000 |
— | ||
|
8
|
8
87157-66J00-000 BUSH,RR CUSH LEG |
87157-66J00-000 |
US $2.24 |
||
|
9
|
9
87960-66J00-000 LOCK ASSY,RR CUSH,L |
87960-66J00-000 |
US $112.24 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
12
|
12
87144-66J00-000 SILENCER,RR CUSH |
87144-66J00-000 |
US $9.16 |
||
|
13
|
13
87159-65DA0-000 CUSHION,RR CUSH |
87159-65DA0-000 |
US $3.90 |
||
|
14
|
14
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
15
|
15
87270-66J00-000 BAND,RR SEAT |
87270-66J00-000 |
US $23.18 |
||
|
16
|
16
87273-63J00-000
フック,リヤシートバンド
|
87273-63J00-000 |
— | ||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
87675-66J00-5PK COVER,RR CUSH BOTTOM,L |
87675-66J00-5PK |
US $78.02 |
||
|
18
|
18
87675-66J00-R8H
COVER,RR CUSH BOTTOM,L
|
87675-66J00-R8H |
— | ||
|
19
|
19
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
20
|
20
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
21
|
21
01551-1225A-000 Bolt |
01551-1225A-000 |
US $1.28 |
||
|
22
|
22
87880-66J00-DBT
TRIM,RR BACK,L
FABRIC |
87880-66J00-DBT |
— | ||
| replacement | |||||
|
22
|
22
87880-66J02-DBT
Trim,rr Back,l
FABRIC |
87880-66J02-DBT |
— | ||
|
22
|
22
87880-66J00-BFL TRIM,RR BACK,L(BLACK)LEATHER |
87880-66J00-BFL |
US $513.92 |
||
|
22
|
22
87880-66J00-BFP
TRIM,RR BACK,L(BEIGE)
LEATHER |
87880-66J00-BFP |
— | ||
|
23
|
23
87306-66J00-000 BACK S/ASSY,RR,L |
87306-66J00-000 |
US $1,020.80 |
||
|
24
|
24
85341-63J00-P4Z
ガイド,ヘッドレストレイント(グレー)
|
85341-63J00-P4Z |
— | ||
| replacements | |||||
|
24
|
24
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
24
|
24
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
24
|
24
85341-63J00-R8H
Guide,headrestraint
|
85341-63J00-R8H |
— | ||
| replacements | |||||
|
24
|
24
85341-63J11-R8H
GUIDE,HEADRESTRAINT
|
85341-63J11-R8H |
— | ||
|
24
|
24
85341-63J12-R8H Guide,headrestraint |
85341-63J12-R8H |
US $6.04 |
||
|
25
|
25
85840-63J00-P4Z
ガイド,ヘッドレストレイント(グレー)
|
85840-63J00-P4Z |
— | ||
| replacements | |||||
|
25
|
25
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
25
|
25
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
25
|
25
85840-63J00-R8H
Guide comp,headrestraint
|
85840-63J00-R8H |
— | ||
| replacements | |||||
|
25
|
25
85840-63J10-R8H
GUIDE,HEADRESTRAINT
|
85840-63J10-R8H |
— | ||
|
25
|
25
85840-63J11-R8H
GUIDE,HEADRESTRAINT
|
85840-63J11-R8H |
— | ||
|
25
|
25
85840-63J12-R8H Guide,headrestraint |
85840-63J12-R8H |
US $6.62 |
||
|
26
|
26
87290-65J00-5PK HANDLE,RCLNG |
87290-65J00-5PK |
from US $6.92 |
||
|
26
|
26
87290-65J00-R8H
HANDLE,RCLNG
|
87290-65J00-R8H |
— | ||
|
27
|
27
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
28
|
28
87359-66J00-000 CAP |
87359-66J00-000 |
US $3.83 |
||
|
29
|
29
87294-66J00-000 CABLE,RCLNG RELEASE |
87294-66J00-000 |
US $12.14 |
||
|
30
|
30
87428-65DA0-5PK STRIKER,TONNEAU COVER |
87428-65DA0-5PK |
US $7.68 |
||
|
30
|
30
87428-65DA0-R8H STRIKER,TONNEAU COVER |
87428-65DA0-R8H |
US $6.55 |
||
|
31
|
31
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
32
|
32
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
33
|
33
87649-66J00-000
Bush
|
87649-66J00-000 |
— | ||
| replacement | |||||
|
33
|
33
87649-66J01-000 BUSH,RR CUSH HINGE |
87649-66J01-000 |
US $3.64 |
||
|
34
|
34
87721-66J00-5PK COVER,RR RCLNG OUT,L |
87721-66J00-5PK |
US $8.72 |
||
|
34
|
34
87721-66J00-R8H
COVER,RCLNG OUTSIDE,L
|
87721-66J00-R8H |
— | ||
|
35
|
35
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
36
|
36
87741-66J00-5PK COVER,RR HINGE INSIDE,L |
87741-66J00-5PK |
US $6.96 |
||
|
36
|
36
87741-66J00-R8H
COVER,RR HINGE INSIDE,L
|
87741-66J00-R8H |
— | ||
|
37
|
37
09159-08119-000 NUT |
09159-08119-000 |
US $15.80 |
||
|
38
|
38
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
38
|
38
09409-10302-R8H CLIP(BEIGE) |
09409-10302-R8H |
US $17.30 |
||
|
39
|
39
87491-66J00-5PK COVER,RR CUSH HINGE FR |
87491-66J00-5PK |
from US $11.52 |
||
|
39
|
39
87491-66J00-R8H COVER,RR CUSH HINGE FR |
87491-66J00-R8H |
US $12.70 |
||
|
40
|
40
87492-66J00-5PK COVER,RR CUSH HINGE RR |
87492-66J00-5PK |
US $19.32 |
||
|
40
|
40
87492-66J00-R8H
COVER,RR CUSH HINGE RR
|
87492-66J00-R8H |
— | ||
|
41
|
41
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
42
|
42
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
