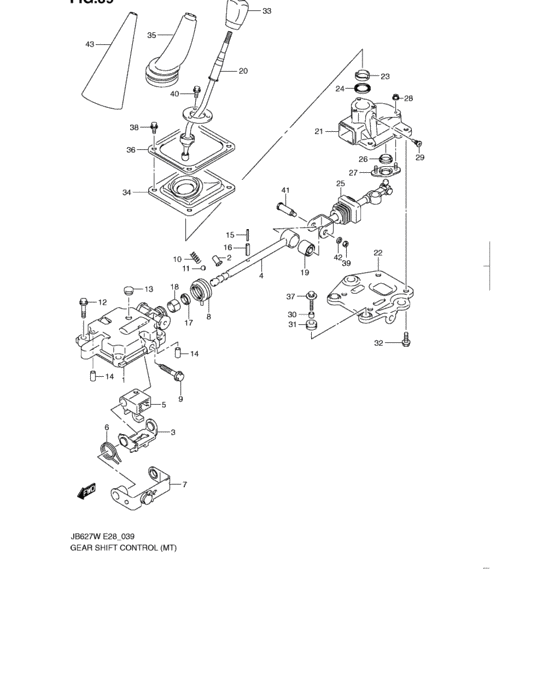

Gear shift control (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-64J20-000
Case, gear shift lever
|
25121-64J20-000 |
— | ||
| replacement | |||||
|
1
|
1
25121-76J00-000 CASE,GEAR SHIFT LEVER |
25121-76J00-000 |
from US $47.12 |
||
|
2
|
2
25250-77A00-000 LOCATING |
25250-77A00-000 |
US $6.29 |
||
|
3
|
3
25310-84A00-000
プレート,ギヤシフトインタロック
|
25310-84A00-000 |
— | ||
| replacement | |||||
|
3
|
3
25310-84A20-000 PLATE,GEAR SHF INTERLOCK |
25310-84A20-000 |
US $21.16 |
||
|
4
|
4
25510-64J00-000 SHAFT,GEAR SHIFT |
25510-64J00-000 |
US $34.96 |
||
|
5
|
5
25541-84A01-000
アーム,ギヤシフト/セレクト
|
25541-84A01-000 |
— | ||
| replacement | |||||
|
5
|
5
25541-84A21-000 ARM,GEAR SHIFT&SELECT |
25541-84A21-000 |
US $41.58 |
||
|
6
|
6
25576-84A20-000 SPRING,GEAR SELECT RETURN |
25576-84A20-000 |
US $2.61 |
||
|
7
|
7
25580-84A00-000
プレート,リバースギヤシフトリミット
|
25580-84A00-000 |
— | ||
| replacement | |||||
|
7
|
7
25580-84A01-000 PLATE,REV GR SHIFT LIMIT |
25580-84A01-000 |
US $28.34 |
||
|
8
|
8
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL |
25651-74B00-000 |
US $6.56 |
||
|
9
|
9
25321-84A00-000 BOLT,GEAR SHIFT STOP |
25321-84A00-000 |
US $3.75 |
||
|
10
|
10
25415-77D00-000 SPRING,GEAR SHF LOCATING |
25415-77D00-000 |
US $1.92 |
||
|
11
|
11
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
12
|
12
09103-08153-000 BOLT(8X30)Bolt (8x30) |
09103-08153-000 |
US $11.80 |
||
|
13
|
13
09250-12004-000 CAP(OD:17) |
09250-12004-000 |
US $12.90 |
||
|
14
|
14
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
15
|
15
09205-03037-000 PIN,SPRING(3X25) |
09205-03037-000 |
from US $0.81 |
||
|
16
|
16
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.60 |
||
|
17
|
17
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
18
|
18
09304-14020-000 BUSH |
09304-14020-000 |
from US $1.82 |
||
|
19
|
19
28119-64J00-000 BUSH,GR SHF SHAFT |
28119-64J00-000 |
US $24.80 |
||
|
20
|
20
28101-64J00-000
レバー,ギヤシフトコントロール
|
28101-64J00-000 |
— | ||
| replacement | |||||
|
20
|
20
28101-64J01-000 LEVER, GEAR SHIFT CONTROL |
28101-64J01-000 |
from US $103.03 |
||
|
21
|
21
25121-64J00-000 CASE,GEAR SHIFT LEVER,RR |
25121-64J00-000 |
US $91.63 |
||
|
22
|
22
25129-64J00-000
PLATE,GEAR SHIFT LEVER CASE
|
25129-64J00-000 |
— | ||
|
23
|
23
28117-82C02-000 SEAT,GEAR CONTROL LOWER |
28117-82C02-000 |
from US $7.31 |
||
|
24
|
24
28118-64J00-000 RING,GEAR SHIFT LEVER CASE |
28118-64J00-000 |
from US $1.94 |
||
|
25
|
25
28104-64J00-000
Shaft assy,gr shf rear
|
28104-64J00-000 |
— | ||
| replacement | |||||
|
25
|
25
28104-64J02-000 SHAFT ASSY,GR SHF RR |
28104-64J02-000 |
US $70.66 |
||
|
26
|
26
28152-84A00-000 BUSH,GR SHF CONTROL JOINT |
28152-84A00-000 |
from US $2.72 |
||
|
27
|
27
28180-64J00-000 PLATE,GR SHF STOPPER |
28180-64J00-000 |
US $11.26 |
||
|
28
|
28
28198-64J00-000
ナット,ギヤシフトストッパプレート
|
28198-64J00-000 |
— | ||
| replacements | |||||
|
28
|
28
28198-78K00-000 NUT,GR SHF STPR PLATE |
28198-78K00-000 |
US $2.94 |
||
|
28
|
28
57870-03G00-000
NUT,GR SHF STPR PLATE
|
57870-03G00-000 |
— | ||
|
29
|
29
28243-64J00-000 BOLT,CONT LEVER LOCATING |
28243-64J00-000 |
from US $2.99 |
||
|
30
|
30
28367-64J00-000 SPACER,GEAR CONT GUIDE CUSHION |
28367-64J00-000 |
US $2.56 |
||
|
31
|
31
09320-12076-000
CUSHION
|
09320-12076-000 |
— | ||
| replacement | |||||
|
31
|
31
09320-12095-000 Cushion |
09320-12095-000 |
US $11.40 |
||
|
32
|
32
57895-03G50-000
BOLT,GEAR SHF LVR CASE PLATE
|
57895-03G50-000 |
— | ||
|
33
|
33
28113-50J05-BWK
ノブ,ギヤシフトレバー
|
28113-50J05-BWK |
— | ||
| replacement | |||||
|
33
|
33
28113-50J07-BWK KNOB,GEAR SHF CONT LEVER |
28113-50J07-BWK |
from US $82.49 |
||
|
34
|
34
28135-64810-000 BOOT SET,GR SHF LEVER NO.1 |
28135-64810-000 |
US $34.78 |
||
|
35
|
35
28136-64J00-000 BOOT,GR SHF CONT LEVER NO.2 |
28136-64J00-000 |
US $16.67 |
||
|
36
|
36
28137-64J00-000 COVER,GR SHF CONTROL BOOT |
28137-64J00-000 |
US $12.14 |
||
|
37
|
37
09118-08119-000 BOLT(8X25) |
09118-08119-000 |
from US $1.38 |
||
|
38
|
38
09118-08165-000 BOLT(8X25) |
09118-08165-000 |
US $14 |
||
|
39
|
39
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
28256-64J00-000
BOLT,SHIFT LEVER NO.1
|
28256-64J00-000 |
— | ||
|
42
|
42
09162-08008-000 WASHER,LOCKLock washer |
09162-08008-000 |
from US $0.80 |
||
|
43
|
43
28139-67J00-000 SILENCER,GEAR SHIFT LEVER |
28139-67J00-000 |
US $7.62 |
||
