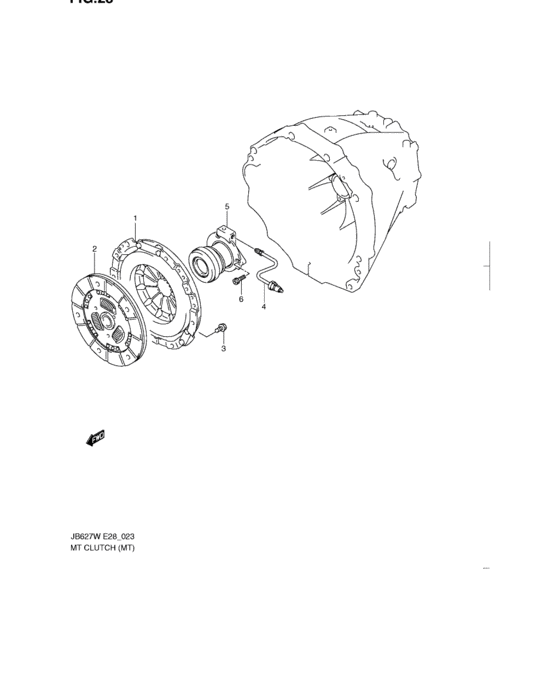

Mt clutch (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-64J00-000
COVER ASSY,CLUTCH
|
22100-64J00-000 |
— | ||
|
2
|
2
22400-64J00-000
Disc comp,clutch
|
22400-64J00-000 |
— | ||
| replacement | |||||
|
2
|
2
22400-64J01-000
DISC,CLUTCH
|
22400-64J01-000 |
— | ||
|
3
|
3
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
US $1.28 |
||
|
4
|
4
23830-64J60-000
PIPE,CLUTCH OIL NO.2
|
23830-64J60-000 |
— | ||
|
5
|
5
23820-64J00-000 CYLINDER ASSY,CLUTCH OPERATING |
23820-64J00-000 |
US $128 |
||
|
6
|
6
07130-0620A-000 BOLT |
07130-0620A-000 |
from US $0.91 |
||
