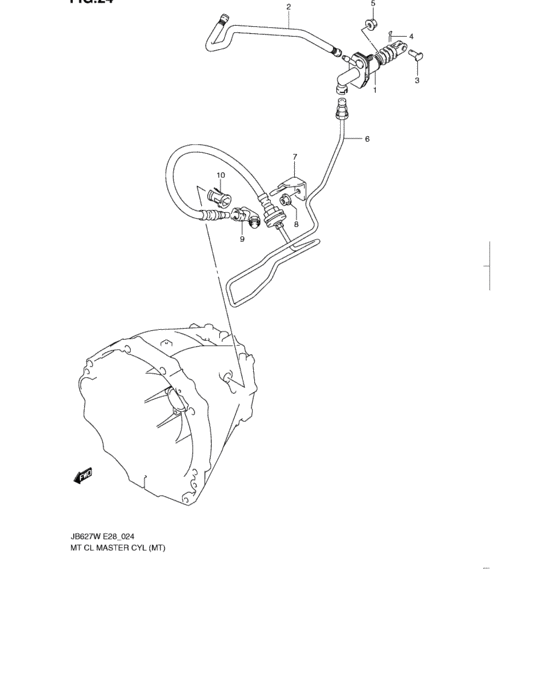

Mt clutch master cyl (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23810-64J00-000
Cylinder assy,clutch master
|
23810-64J00-000 |
— | ||
| replacement | |||||
|
1
|
1
23810-64J21-000 CYLINDER ASSY,CLUTCH MASTER |
23810-64J21-000 |
from US $114.57 |
||
|
2
|
2
23881-64J00-000 HOSE,CLUTCH RESERVOIR |
23881-64J00-000 |
US $67.86 |
||
|
3
|
3
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
4
|
4
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $1.60 |
||
|
5
|
5
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
6
|
6
23830-64J10-000 PIPE,CLUTCH OIL NO.1 |
23830-64J10-000 |
US $113.18 |
||
|
7
|
7
23871-64J00-000 BRACKET,CLUTCH OIL HOSE |
23871-64J00-000 |
US $4.32 |
||
|
8
|
8
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
9
|
9
23856-64JA0-000 JOINT ASSY,CLUTCH PIPE |
23856-64JA0-000 |
from US $17.62 |
||
|
10
|
10
23874-64J00-000 SLEEVE,CLUTCH PIPE JOINT |
23874-64J00-000 |
from US $1.85 |
||
