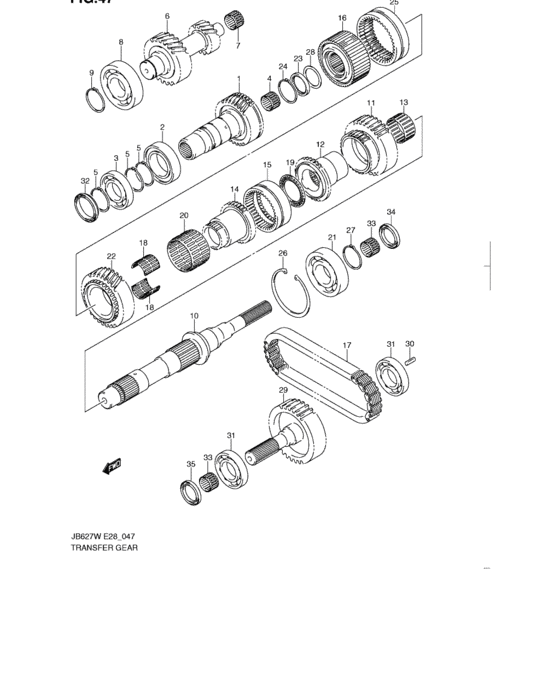

Transfer gear (TRANSFER GEAR) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-66J01-000
Gear comp,t/f input
06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29110-66J01-000 |
— | ||
| replacement | |||||
|
1
|
1
29110-66J02-000 GEAR,T/F INPUT06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29110-66J02-000 |
US $323.84 |
||
|
1
|
1
29110-66J11-000
ギヤ,トランスファインプット
06 MODEL,07 MODEL:JA,JL,JX,06 MODEL,07 MODEL:JLX:N/LEATHER,08 MODEL:JA |
29110-66J11-000 |
— | ||
| replacement | |||||
|
1
|
1
29110-66J12-000
GEAR,T/F INPUT
06 MODEL,07 MODEL:JA,JL,JX,06 MODEL,07 MODEL:JLX:N/LEATHER,08 MODEL:JA |
29110-66J12-000 |
— | ||
|
2
|
2
29921-66J00-000 BEARING,T/F INPUT GEAR RR |
29921-66J00-000 |
US $157.87 |
||
|
3
|
3
29931-66J00-000 BEARING,T/F INPUT GEAR FR |
29931-66J00-000 |
US $41.58 |
||
|
4
|
4
29922-66J00-000 BEARING,T/F INPUT GEAR NDL |
29922-66J00-000 |
US $15.68 |
||
|
5
|
5
08331-31506-000
Circlip
|
08331-31506-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31509-000 CIRCLIP |
08331-31509-000 |
from US $5.01 |
||
|
6
|
6
29121-66J00-000 GEAR,T/F COUNTER06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29121-66J00-000 |
US $200.56 |
||
|
7
|
7
29923-66J00-000 BEARING,T/F COUNTER GEAR NDL06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29923-66J00-000 |
US $15.93 |
||
|
8
|
8
08113-63070-000 Bearing06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
08113-63070-000 |
US $32.20 |
||
|
9
|
9
08331-3135A-000
Circlip
06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
08331-3135A-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-31359-000 CIRCLIP06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
08331-31359-000 |
from US $4.45 |
||
|
10
|
10
29141-66J00-000 SHAFT,REAR OUTPUT |
29141-66J00-000 |
US $213.44 |
||
|
11
|
11
29221-66J00-000 SPROCKET,FRONT DRIVE |
29221-66J00-000 |
US $112.24 |
||
|
12
|
12
29222-66J00-000 BUSH,FR DRIVE SPROCKET |
29222-66J00-000 |
US $50.78 |
||
|
13
|
13
29924-66J00-000 BEARING,FR DR SPRKT NDL |
29924-66J00-000 |
US $28.70 |
||
|
14
|
14
29223-66J00-000 SHAFT,FRONT DRIVE |
29223-66J00-000 |
US $56.67 |
||
|
15
|
15
29262-66J00-000 SLEEVE,DIFF LOCK CLUTCH |
29262-66J00-000 |
US $66.24 |
||
|
16
|
16
29710-66J00-000 DIFFERENTIAL ASSY,CENTER LSD |
29710-66J00-000 |
US $1,278.40 |
||
|
17
|
17
29225-66J00-000
Chain,front drive
|
29225-66J00-000 |
— | ||
| replacement | |||||
|
17
|
17
29225-66J01-000 CHAIN,FR DRIVE |
29225-66J01-000 |
US $552 |
||
|
18
|
18
29925-66J00-000 BEARING,FR DR SFT NDL |
29925-66J00-000 |
US $12.14 |
||
|
19
|
19
29927-66J00-000 BEARING,FR DR SFT THR NDL |
29927-66J00-000 |
US $9.90 |
||
|
20
|
20
29928-66J00-000 BEARING,LOW GEAR NDL06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29928-66J00-000 |
US $28.34 |
||
|
21
|
21
29932-66J00-000 BEARING,RR OUTPUT SFT |
29932-66J00-000 |
US $55.57 |
||
|
22
|
22
29211-66J00-000 GEAR,LOW06 MODEL,07 MODEL:JLX:W/LEATHER,08 MODEL:JX,JLX |
29211-66J00-000 |
US $151.62 |
||
|
23
|
23
29722-66J00-000 WASHER,CTR DIFF CAM |
29722-66J00-000 |
US $13.73 |
||
|
24
|
24
08331-31383-000 CIRCLIP |
08331-31383-000 |
from US $1.82 |
||
|
25
|
25
29241-66J01-000 SLEEVE,REDUCTION SHIFT |
29241-66J01-000 |
US $83.54 |
||
|
26
|
26
29380-66J00-000 CIRCLIP,RR OUTPUT BRG NO.2 |
29380-66J00-000 |
US $7.40 |
||
|
27
|
27
08331-3140A-000
Circlip
|
08331-3140A-000 |
— | ||
| replacement | |||||
|
27
|
27
08331-31409-000 CIRCLIP |
08331-31409-000 |
from US $4.88 |
||
|
28
|
28
29724-66J00-040 SHIM,CTR DIFF CAM T:0.40 |
29724-66J00-040 |
US $4.86 |
||
|
28
|
28
29724-66J00-060 SHIM,CTR DIFF CAM T:0.60 |
29724-66J00-060 |
US $4.86 |
||
|
28
|
28
29724-66J00-080 SHIM,CTR DIFF CAM T:0.80 |
29724-66J00-080 |
US $4.86 |
||
|
28
|
28
29724-66J00-100 SHIM,CTR DIFF CAM T:1.00 |
29724-66J00-100 |
US $5.67 |
||
|
28
|
28
29724-66J00-120 SHIM,CTR DIFF CAM T:1.20 |
29724-66J00-120 |
US $5.67 |
||
|
28
|
28
29724-66J00-140 SHIM,CTR DIFF CAM T:1.40 |
29724-66J00-140 |
US $5.67 |
||
|
28
|
28
29724-66J00-160 SHIM,CTR DIFF CAM T:1.60 |
29724-66J00-160 |
US $5.67 |
||
|
28
|
28
29724-66J00-180 SHIM,CTR DIFF CAM T:1.80 |
29724-66J00-180 |
US $5.67 |
||
|
28
|
28
29724-66J00-200 SHIM,CTR DIFF CAM T:2.00 |
29724-66J00-200 |
US $6.40 |
||
|
28
|
28
29724-66J00-220 SHIM,CTR DIFF CAM T:2.20 |
29724-66J00-220 |
US $6.40 |
||
|
28
|
28
29724-66J00-240 SHIM,CTR DIFF CAM T:2.40 |
29724-66J00-240 |
US $6.40 |
||
|
29
|
29
29151-66J00-000 SHAFT,FRONT OUTPUT |
29151-66J00-000 |
US $167.44 |
||
|
30
|
30
29152-66J00-000 PIN,OIL PUMP DRIVE |
29152-66J00-000 |
US $15.36 |
||
|
31
|
31
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
32
|
32
29283-66J40-000
Seal,input gear
|
29283-66J40-000 |
— | ||
| replacement | |||||
|
32
|
32
09283-48015-000 SEAL,OIL(48X62X7) |
09283-48015-000 |
US $61.60 |
||
|
33
|
33
09263-40006-000 BEARING(40X47X30) |
09263-40006-000 |
US $39.20 |
||
|
34
|
34
29283-66J30-000 SEAL,RR OUTPUT SHAFT |
29283-66J30-000 |
from US $12.76 |
||
|
35
|
35
29283-66J20-000
Seal,front output shaft
|
29283-66J20-000 |
— | ||
| replacement | |||||
|
35
|
35
09283-40037-000 SEAL,OIL(40X54X7.3) |
09283-40037-000 |
US $15.20 |
||
