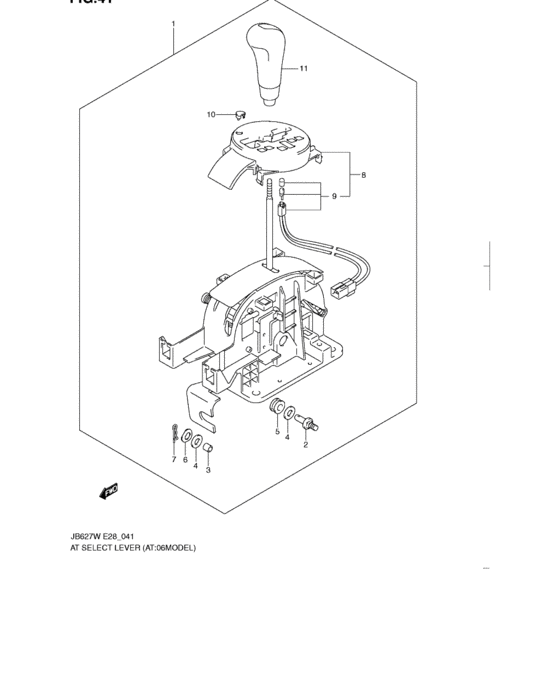

At select lever (AT:06 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-64JK1-BWK
Lever assy, select
JA,JL,JLX:N/LEATHER |
28100-64JK1-BWK |
— | ||
| replacement | |||||
|
1
|
1
28100-64JK4-BWK SELECTOR ASSY,MANUALJA,JL,JLX:N/LEATHER |
28100-64JK4-BWK |
US $401.12 |
||
|
1
|
1
28100-64JK1-KN1
Selector assy,manual
JLX:W/LEATHER |
28100-64JK1-KN1 |
— | ||
| replacement | |||||
|
1
|
1
28100-64JK3-KN1
SELECTOR ASSY,MANUAL
JLX:W/LEATHER |
28100-64JK3-KN1 |
— | ||
|
1
|
1
28100-64J11-BKN
SELECTOR ASSY,MANUAL
JLX:W/LEATHER |
28100-64J11-BKN |
— | ||
|
2
|
2
28141-64J10-000
ピン
|
28141-64J10-000 |
— | ||
| replacement | |||||
|
2
|
2
28141-64J11-000 PIN |
28141-64J11-000 |
US $3.04 |
||
|
3
|
3
28142-64J10-000
チューブ
|
28142-64J10-000 |
— | ||
| replacement | |||||
|
3
|
3
28142-64J11-000 TUBE |
28142-64J11-000 |
US $1.58 |
||
|
4
|
4
28143-64J10-000
ワッシャ
|
28143-64J10-000 |
— | ||
| replacement | |||||
|
4
|
4
28143-64J11-000 WASHER |
28143-64J11-000 |
US $1.51 |
||
|
5
|
5
28144-64J10-000 INSULATOR |
28144-64J10-000 |
US $5.92 |
||
|
6
|
6
28145-64J10-000
ワッシャ
|
28145-64J10-000 |
— | ||
| replacement | |||||
|
6
|
6
28145-64J11-000 WASHER |
28145-64J11-000 |
US $4.64 |
||
|
7
|
7
28146-64J10-000
ピン
|
28146-64J10-000 |
— | ||
| replacement | |||||
|
7
|
7
28146-64J11-000 PIN |
28146-64J11-000 |
US $1.60 |
||
|
8
|
8
28150-64JK0-5PK
INDICATOR ASSY
|
28150-64JK0-5PK |
— | ||
|
9
|
9
28159-64J10-000
LAMP ASSY
|
28159-64J10-000 |
— | ||
|
10
|
10
28157-64J10-000
CAP
|
28157-64J10-000 |
— | ||
|
11
|
11
28160-62J10-BWK
ノブアッシ,セレクトレバー
JA,JL,JLX:N/LEATHER |
28160-62J10-BWK |
— | ||
| replacement | |||||
|
11
|
11
28160-62J12-BWK KNOB ASSY,SELECT LEVERJA,JL,JLX:N/LEATHER |
28160-62J12-BWK |
from US $32.56 |
||
|
11
|
11
28160-62J10-KN1
Knob assy,select lever
JLX:W/LEATHER |
28160-62J10-KN1 |
— | ||
| replacements | |||||
|
11
|
11
28160-62J11-KN1
KNOB ASSY,SELECT LEVER
JLX:W/LEATHER |
28160-62J11-KN1 |
— | ||
|
11
|
11
28160-62J12-KN1
KNOB ASSY,SELECT LEVER
JLX:W/LEATHER |
28160-62J12-KN1 |
— | ||
|
11
|
11
28160-62J10-BKN
Knob assy,select lever
JLX:W/LEATHER |
28160-62J10-BKN |
— | ||
| replacements | |||||
|
11
|
11
28160-62J11-BKN
KNOB ASSY,SELECT LEVER
JLX:W/LEATHER |
28160-62J11-BKN |
— | ||
|
11
|
11
28160-62J12-BKN
KNOB ASSY,SELECT LEVER
JLX:W/LEATHER |
28160-62J12-BKN |
— | ||
