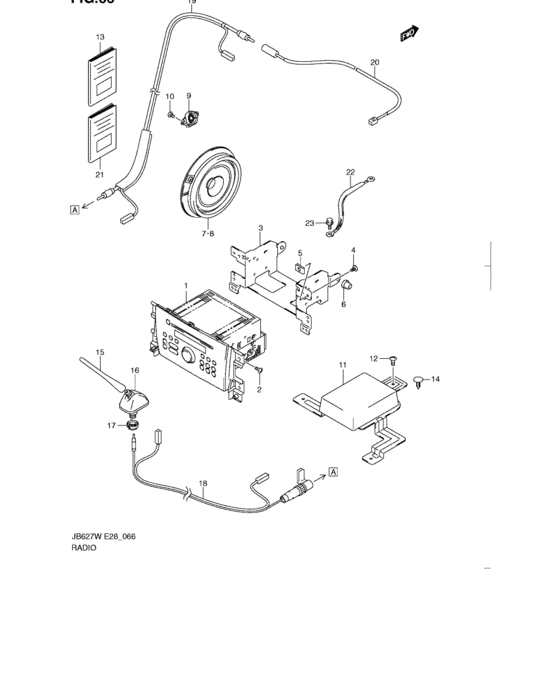

Radio (RADIO) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-65J20-ZEW
TUNER ASSY
06 MODEL |
39101-65J20-ZEW |
— | ||
|
1
|
1
39101-65J30-ZEW
TUNER ASSY
06 MODEL |
39101-65J30-ZEW |
— | ||
|
1
|
1
39101-65J30-ZEY
TUNER ASSY
06 MODEL |
39101-65J30-ZEY |
— | ||
|
1
|
1
39101-65JL1-ZCA
TUNER ASSY
07 MODEL,08 MODEL |
39101-65JL1-ZCA |
— | ||
|
1
|
1
39101-65JM1-ZCA
TUNER ASSY
07 MODEL,08 MODEL |
39101-65JM1-ZCA |
— | ||
|
1
|
1
39101-65JM1-ZS1
TUNER ASSY
06 MODEL,08 MODEL |
39101-65JM1-ZS1 |
— | ||
|
1
|
1
39101-65JU1-ZCA
Tuner assy
07 MODEL,08 MODEL,W/ILLMINATION CONTROL |
39101-65JU1-ZCA |
— | ||
|
1
|
1
39101-65JU1-ZS1
Tuner assy
07 MODEL,08 MODEL,W/ILLMINATION CONTROL |
39101-65JU1-ZS1 |
— | ||
|
2
|
2
02142-0506A-000 SCREW |
02142-0506A-000 |
US $0.80 |
||
|
3
|
3
39321-65J00-000 BRACKET,TUNER |
39321-65J00-000 |
US $12.92 |
||
|
4
|
4
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.65 |
||
|
5
|
5
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
6
|
6
34955-54G10-000 BUSH,RADIO BRKT |
34955-54G10-000 |
US $1.44 |
||
|
7
|
7
39102-65J30-000 SPEAKER ASSYFRONT & REAR SPEAKER RH |
39102-65J30-000 |
US $32.57 |
||
|
8
|
8
39102-65J30-000 SPEAKER ASSYFRONT & REAR SPEAKER LH |
39102-65J30-000 |
US $32.57 |
||
|
9
|
9
39102-65J20-000 SPEAKER ASSY,TWEETERW/TWEETER SPEAKER |
39102-65J20-000 |
from US $15.46 |
||
|
10
|
10
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
11
|
11
39104-66J00-000 SPEAKER ASSY,SUBW/SUB WOOFER |
39104-66J00-000 |
US $261.28 |
||
|
12
|
12
02162-0616C-000 SCREWW/SUB WOOFER |
02162-0616C-000 |
US $0.80 |
||
| replacement | |||||
|
12
|
12
02162-0616B-000 SCREWBolt, adjust W/SUB WOOFER |
02162-0616B-000 |
from US $0.80 |
||
|
13
|
13
39106-66J20-000
Owner's manual,sub speaker
W/SUB WOOFER |
39106-66J20-000 |
— | ||
|
14
|
14
09409-06326-5PK CLIP(BLACK)N/SUB WOOFER |
09409-06326-5PK |
US $12.90 |
||
|
15
|
15
39251-64J00-000
ROD,ANTENNA
|
39251-64J00-000 |
— | ||
|
16
|
16
39253-64J01-000 BASE,ANTENNA06 MODEL,07 MODEL |
39253-64J01-000 |
US $76.75 |
||
|
16
|
16
39253-65JB0-000 BASE,ANTENNA08 MODEL |
39253-65JB0-000 |
US $80.91 |
||
|
17
|
17
39269-64J00-000 NUT,ANTENNA06 MODEL,07 MODEL |
39269-64J00-000 |
US $9.42 |
||
|
18
|
18
39271-66JC0-000 FEEDER,ANT BACK06 MODEL,07 MODEL |
39271-66JC0-000 |
US $49.41 |
||
|
18
|
18
39271-66JD0-000 FEEDER,ANT BACK08 MODEL |
39271-66JD0-000 |
US $18.77 |
||
|
19
|
19
39271-65JA0-000 FEEDER,ANT ROOF |
39271-65JA0-000 |
US $37.17 |
||
|
20
|
20
39270-64JA0-000 FEEDER,ANT I/P |
39270-64JA0-000 |
US $23.74 |
||
|
21
|
21
39103-80JA1-000
Manual,audio
W/TUNER:FOR 39101-65ZU0-ZCA/ZS1 |
39103-80JA1-000 |
— | ||
| replacement | |||||
|
21
|
21
39103-80JC0-000 MANUAL,AUDIOW/TUNER:FOR 39101-65ZU0-ZCA/ZS1 |
39103-80JC0-000 |
US $42.32 |
||
|
22
|
22
39312-78F10-000 WIRE,NOISE SUPPR |
39312-78F10-000 |
US $5.76 |
||
|
23
|
23
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
