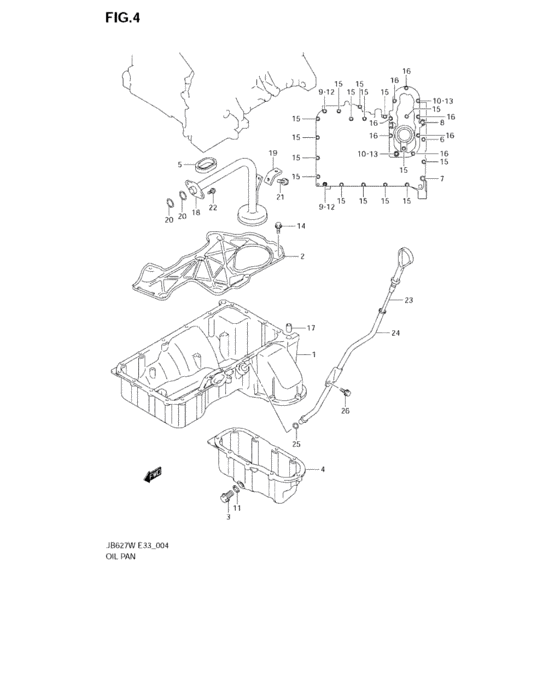

Oil pan (OIL PAN) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- PREMIUM PKG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11511-66J01-000 PAN,OIL UPPER |
11511-66J01-000 |
US $454.40 |
||
|
2
|
2
11512-66J00-000
PLATE,OIL PAN BAFFLE
|
11512-66J00-000 |
— | ||
|
3
|
3
11518-63J01-000 PLUG,OIL DRAIN |
11518-63J01-000 |
US $2.56 |
||
|
4
|
4
11521-66J00-000 PAN,OIL LOWER |
11521-66J00-000 |
US $244.80 |
||
|
5
|
5
16532-85F11-000 O-RING,OIL PAN |
16532-85F11-000 |
US $2.59 |
||
|
6
|
6
09103-06167-000 BOLT(6X115)Bolt (l:115) |
09103-06167-000 |
from US $2.13 |
||
|
7
|
7
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
8
|
8
09103-08372-000 BOLT(8X190) |
09103-08372-000 |
US $69.20 |
||
|
9
|
9
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
10
|
10
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
11
|
11
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.37 |
||
|
12
|
12
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
13
|
13
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
14
|
14
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
18
|
18
16520-66J00-000 STRAINER,OIL PUMP |
16520-66J00-000 |
US $54.83 |
||
|
19
|
19
16527-85F10-000 BRACKET,OIL STRAINER,NO.2 |
16527-85F10-000 |
US $3.75 |
||
|
20
|
20
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) |
09280-22020-000 |
from US $1.60 |
||
|
21
|
21
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
23
|
23
16910-66J11-000 GAUGE,OIL LEVEL |
16910-66J11-000 |
US $26.40 |
||
|
24
|
24
16930-66J00-000 GUIDE,OIL LEVEL GAUGE |
16930-66J00-000 |
US $33.44 |
||
|
25
|
25
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
26
|
26
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
