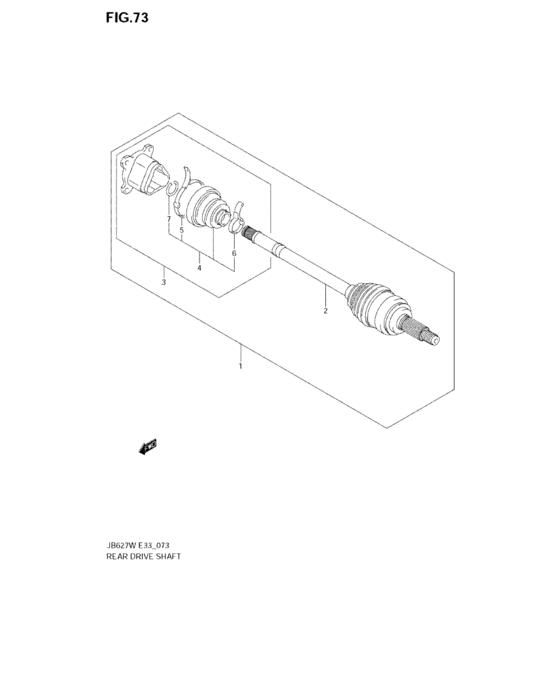

Rear drive shaft (4WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- PREMIUM+
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44105-65J00-000
Shaft assy, rear drive
2WD,4WD:MT |
44105-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
44105-79K00-000 SHAFT ASSY,REAR DRIVE,2WD,4WD:MT |
44105-79K00-000 |
US $1,331.20 |
||
|
2
|
2
44119-65J00-000
JOINT ASSY,WHL SIDE
2WD,4WD:MT |
44119-65J00-000 |
— | ||
| replacement | |||||
|
2
|
2
44119-65J01-000
JOINT ASSY,WHL SIDE
2WD,4WD:MT |
44119-65J01-000 |
— | ||
|
3
|
3
44116-65J00-000
JOINT ASSY,DIFF SIDE
2WD,4WD:MT |
44116-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
44116-65J01-000 JOINT ASSY,DIFF SIDE2WD,4WD:MT |
44116-65J01-000 |
US $513.92 |
||
|
4
|
4
44127-65J00-000
Boot set,diff side
|
44127-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
44127-65J01-000 BOOT SET,DIFF SIDE |
44127-65J01-000 |
US $90.53 |
||
|
5
|
5
44122-65J00-000 CLAMP,BOOT |
44122-65J00-000 |
US $7.91 |
||
|
6
|
6
44124-65J00-000
CLAMP,BOOT
|
44124-65J00-000 |
— | ||
|
7
|
7
44112-65J00-000
CIRCLIP
|
44112-65J00-000 |
— | ||
