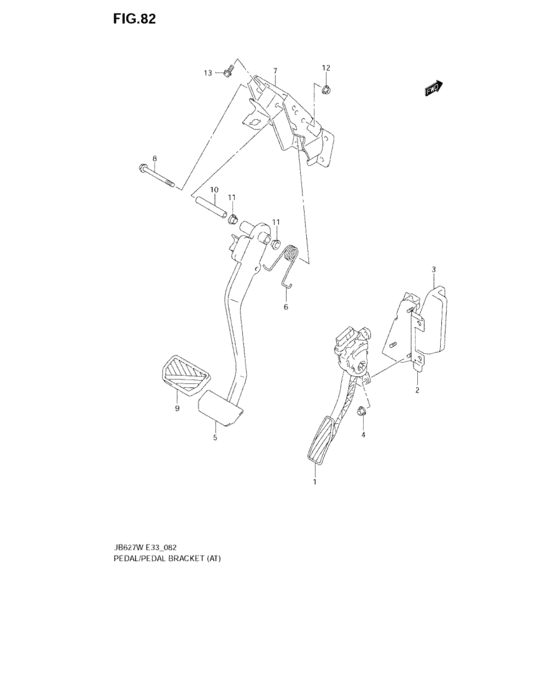

Pedal/pedal bracket (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- PREMIUM+
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15900-65J02-000 Pedal assy,accelerator |
15900-65J02-000 |
US $345.04 |
||
| replacement | |||||
|
1
|
1
15900-65J10-000 PEDAL ASSY,ACCELERATOR |
15900-65J10-000 |
US $640 |
||
|
2
|
2
49510-65J50-000 BRACKET,ACCELERATOR PEDAL |
49510-65J50-000 |
US $21.34 |
||
|
3
|
3
75295-65J50-000
SILENCER,ACCEL PEDAL BRACKET
~JS3T 64103044,~JS3T 64105176,~JS3T 64101386,~JS3T 64100049,~JS3T 64102149,~JS3TD941 64103269,~JS3TD943 64103693,~JS3TD944 64101870,~JS3TD945 64100481,~JS3TD947 64102774 |
75295-65J50-000 |
— | ||
|
4
|
4
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
5
|
5
49610-66J70-000
PEDAL,BRAKE
|
49610-66J70-000 |
— | ||
|
6
|
6
49691-65J10-000
SPRING,BRAKE PEDAL
|
49691-65J10-000 |
— | ||
|
7
|
7
49710-66J00-000
BRACKET,PEDAL
|
49710-66J00-000 |
— | ||
|
8
|
8
49722-65J10-000
Bolt,brake pedal shaft
|
49722-65J10-000 |
— | ||
|
9
|
9
49751-58J10-000 PAD,PEDAL |
49751-58J10-000 |
US $5.02 |
||
|
10
|
10
49871-65J00-000
SPACER,BRAKE PEDAL
|
49871-65J00-000 |
— | ||
|
11
|
11
09307-13005-000 BUSHBushing |
09307-13005-000 |
US $2.72 |
||
|
12
|
12
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
