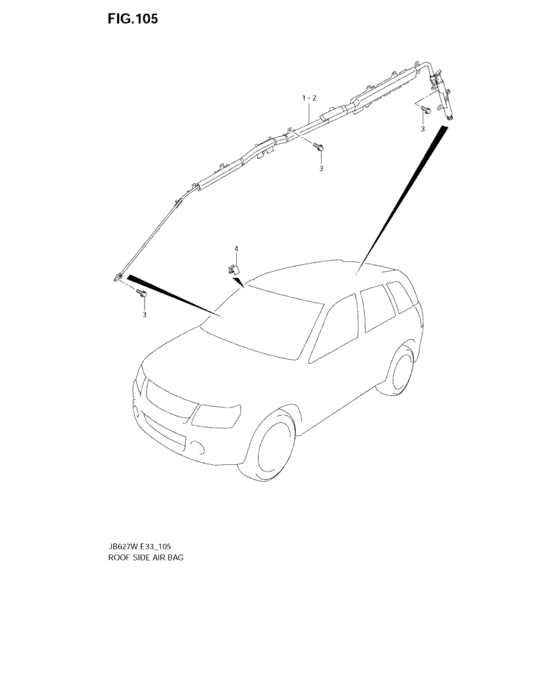

Roof side air bag (ROOF SIDE AIR BAG) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- GV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76450-65J01-000
MODULE ASSY,ROOF SIDE A/B,R
06 MODEL |
76450-65J01-000 |
— | ||
|
1
|
1
76450-65J02-000
モジュールアッシ,ルーフサイドエアバッグ,ライト
07 MODEL,08 MODEL |
76450-65J02-000 |
— | ||
| replacement | |||||
|
1
|
1
76450-65J03-000
MODULE ASSY,ROOF SIDE A/B,R
07 MODEL,08 MODEL |
76450-65J03-000 |
— | ||
|
2
|
2
76460-65J01-000
Module assy,roof side airbag,l
06 MODEL |
76460-65J01-000 |
— | ||
|
2
|
2
76460-65J02-000
モジュールアッシ,ルーフサイドエアバッグ,レフト
07 MODEL,08 MODEL |
76460-65J02-000 |
— | ||
| replacement | |||||
|
2
|
2
76460-65J03-000
MODULE ASSY,ROOF SIDE A/B,L
07 MODEL,08 MODEL |
76460-65J03-000 |
— | ||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
76454-64J00-000
HOLDER,ROOF LINING
JS3T 64100684~64104133,JS3T 64101869~64107065,JS3T 64100001~64103820,JS3T 64100017~64100036,JS3T 64100943~64105058,JS3TD941 64100771~64104443,JS3TD943 64101530~64104105,JS3TD944 64100001~64104534,JS3TD945 64100204~64100766,JS3TD947 641 |
76454-64J00-000 |
— | ||
| replacement | |||||
|
4
|
4
76454-64J01-000 HOLDER,ROOF LININGJS3T 64100684~64104133,JS3T 64101869~64107065,JS3T 64100001~64103820,JS3T 64100017~64100036,JS3T 64100943~64105058,JS3TD941 64100771~64104443,JS3TD943 64101530~64104105,JS3TD944 64100001~64104534,JS3TD945 64100204~64100766,JS3TD947 641 |
76454-64J01-000 |
US $3.35 |
||
