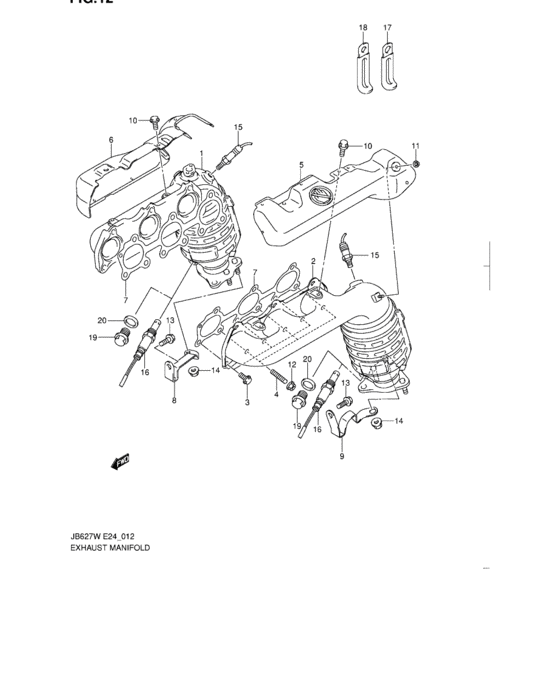

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-66J21-000 MANIFOLD,EXH,R |
14110-66J21-000 |
US $1,561.60 |
||
|
2
|
2
14110-66J31-000 MANIFOLD,EXH,L |
14110-66J31-000 |
US $876.48 |
||
|
3
|
3
14118-52D00-000 BOLT,EXH MANF |
14118-52D00-000 |
US $3.53 |
||
|
4
|
4
14118-77E03-000 STUD BOLT,EXH MANF |
14118-77E03-000 |
US $1.82 |
||
|
5
|
5
14120-66J00-000 COVER,EXH MANF,LEFT |
14120-66J00-000 |
US $48.58 |
||
|
6
|
6
14120-66J10-000 COVER,EXH MANF,RIGHT |
14120-66J10-000 |
US $58.51 |
||
|
7
|
7
14140-67D03-000 GASKET,EXH MANF |
14140-67D03-000 |
US $48.80 |
||
|
8
|
8
14271-52D00-000 STIFFENER,EXH MANF,R |
14271-52D00-000 |
US $10.12 |
||
|
9
|
9
14271-52D10-000 STIFFENER,EXH MANF,L |
14271-52D10-000 |
US $10.12 |
||
|
10
|
10
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
US $1.60 |
||
|
10
|
10
09103-06265-000 BOLT(6X12)JSAJTD94V00101387~,JS3TD94V 64100056~ |
09103-06265-000 |
US $1.28 |
||
|
11
|
11
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
12
|
12
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
13
|
13
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
15
|
15
18213-66J00-000 SENSOR,A/FTYPE 1 |
18213-66J00-000 |
US $329.36 |
||
|
15
|
15
18213-66J20-000 SENSOR,A/FTYPE 2,TYPE 3 |
18213-66J20-000 |
US $329.36 |
||
|
16
|
16
18213-66J10-000
センサ,ヒーテツドオキシジェン,リヤ
Australia,Taiwan |
18213-66J10-000 |
— | ||
| replacement | |||||
|
16
|
16
18213-66J11-000 SENSOR,OXYGENAustralia,Taiwan |
18213-66J11-000 |
US $285.20 |
||
|
16
|
16
18213-66J11-000 SENSOR,OXYGENAustralia,Taiwan,JSAJTD94V00200998~,JS3TD94V 74201199~ |
18213-66J11-000 |
US $285.20 |
||
|
17
|
17
09404-10417-000 CLAMP(L:97)Australia,Taiwan |
09404-10417-000 |
from US $3.71 |
||
|
18
|
18
09404-12202-000 CLAMP(L:103)Australia,Taiwan |
09404-12202-000 |
US $29.10 |
||
|
19
|
19
09247-18003-000 PLUG,Chile,Sinagpore,Saudi Arabia,,6 |
09247-18003-000 |
US $1.76 |
||
|
20
|
20
09168-18008-000 GASKET(17.7X24.2X1.6),Chile,Sinagpore,Saudi Arabia,,6 |
09168-18008-000 |
US $1.12 |
||
