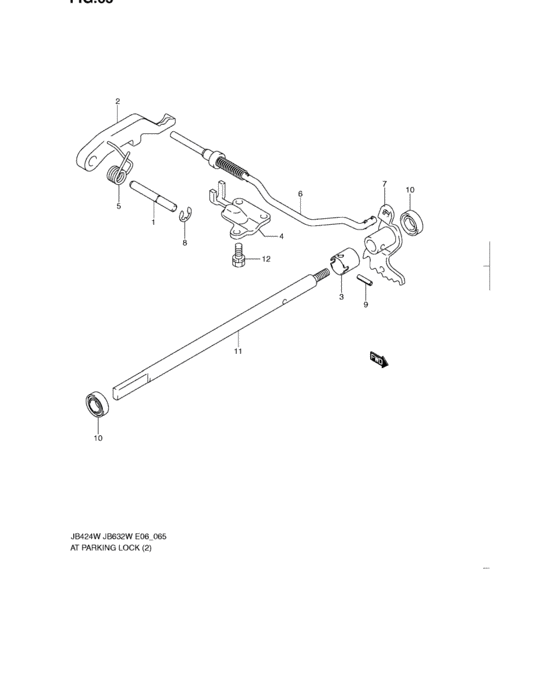

At parking lock (AT:JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25911-54J10-000
SHAFT,PARKING LOCK PAWL
|
25911-54J10-000 |
— | ||
|
2
|
2
25912-54J10-000 PAWL,PARKING LOCK |
25912-54J10-000 |
US $66.98 |
||
|
3
|
3
25912-57B00-000 SPACER,MANUAL DETENT LEVER |
25912-57B00-000 |
US $8.98 |
||
|
4
|
4
25914-54J10-000
BRACKET,PARKING LOCK PAWL
|
25914-54J10-000 |
— | ||
|
5
|
5
25918-54J10-000 SPRING,PARKING LOCK RETURN |
25918-54J10-000 |
US $8.91 |
||
|
6
|
6
25920-79K10-000
ROD,PARKING LOCK
|
25920-79K10-000 |
— | ||
|
7
|
7
25951-64J30-000
LEVER,MANUAL SHIFT
|
25951-64J30-000 |
— | ||
|
8
|
8
28948-57B00-000 RING,SNAP PARKING LOCK PAWL |
28948-57B00-000 |
US $8.39 |
||
|
9
|
9
29898-57B00-000 PIN,SPRING MNL SHIFT LVR |
29898-57B00-000 |
US $6.37 |
||
|
10
|
10
25981-60G10-000 SEAL,OIL |
25981-60G10-000 |
from US $5.83 |
||
|
11
|
11
29541-64J10-000 SHAFT,MANUAL VALVE LEVER |
29541-64J10-000 |
US $31.65 |
||
|
12
|
12
24746-53J10-000 BOLT,INPUT SPEED SENSOR |
24746-53J10-000 |
US $2.74 |
