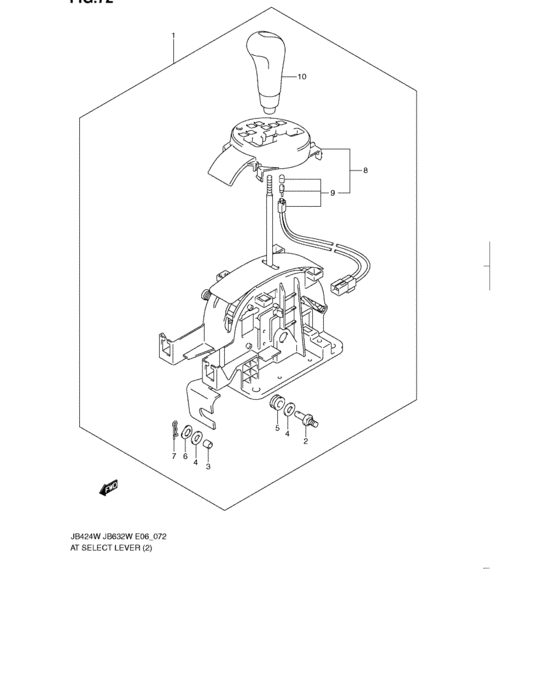

At select lever (AT:JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-64JL2-BWK
SELECTOR ASSY,MANUAL
|
28100-64JL2-BWK |
— | ||
|
2
|
2
28141-64J11-000 PIN |
28141-64J11-000 |
US $3.04 |
||
|
3
|
3
28142-64J11-000 TUBE |
28142-64J11-000 |
US $1.58 |
||
|
4
|
4
28143-64J11-000 WASHER |
28143-64J11-000 |
US $1.51 |
||
|
5
|
5
28144-64J10-000 INSULATOR |
28144-64J10-000 |
US $5.92 |
||
|
6
|
6
28145-64J11-000 WASHER |
28145-64J11-000 |
US $4.64 |
||
|
7
|
7
28146-64J11-000 PIN |
28146-64J11-000 |
US $1.60 |
||
|
8
|
8
28150-64JL0-5PK INDICATOR ASSY |
28150-64JL0-5PK |
US $83.54 |
||
|
9
|
9
28159-64JJ0-000 LAMP ASSY |
28159-64JJ0-000 |
US $19.50 |
||
|
10
|
10
28160-62J10-BWK
ノブアッシ,セレクトレバー
|
28160-62J10-BWK |
— | ||
| replacement | |||||
|
10
|
10
28160-62J12-BWK KNOB ASSY,SELECT LEVER |
28160-62J12-BWK |
from US $32.56 |
||
