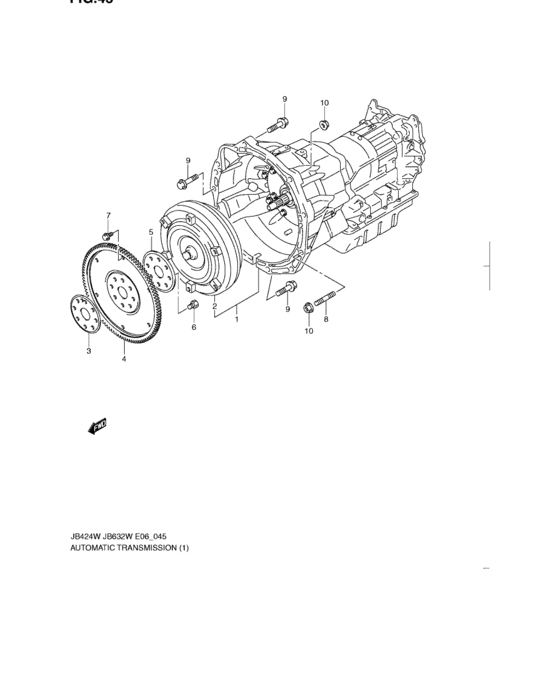

Automatic transmission (AT:JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-78K10-000 T/M ASSY,AUTOMATIC |
21000-78K10-000 |
US $7,781.28 |
||
|
2
|
2
22700-78K10-000 CONVERTER,TORQUE |
22700-78K10-000 |
US $2,384 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-78K10-000 PLATE,TC DRIVE |
22620-78K10-000 |
from US $171.72 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-08507-000 BOLT(8X9.5) |
09103-08507-000 |
US $21.70 |
||
|
8
|
8
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.50 |
||
|
9
|
9
01550-1255A-000 Bolt |
01550-1255A-000 |
US $21.70 |
||
|
10
|
10
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
11
|
11
24700-65JV0-000 GASKET KIT,AT OVERHAULNOT ILLUSTRATED |
24700-65JV0-000 |
US $790.40 |
