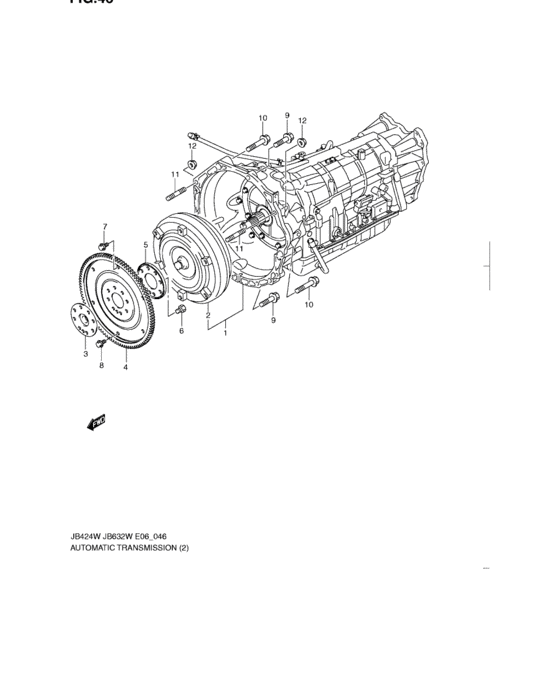

Automatic transmission (AT:JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-79K10-000
T/M ASSY,AUTOMATIC
|
21000-79K10-000 |
— | ||
|
2
|
2
22700-79K10-000
CONVERTER,TORQUE
|
22700-79K10-000 |
— | ||
|
3
|
3
22611-79K10-000
FLANGE,T/C DRIVE PLATE FR
|
22611-79K10-000 |
— | ||
|
4
|
4
22620-79K10-000 PLATE,TC DRIVE |
22620-79K10-000 |
US $224.48 |
||
|
5
|
5
22631-79K10-000
PLATE,TC DRIVE REAR
|
22631-79K10-000 |
— | ||
|
6
|
6
22651-79K10-000
BOLT,T/C DRIVE PLATE
|
22651-79K10-000 |
— | ||
|
7
|
7
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
from US $2.09 |
||
|
8
|
8
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
21342-68D10-000 BOLT,BLOCK&T/M CASE NO,2 |
21342-68D10-000 |
US $1.95 |
||
|
10
|
10
09103-10304-000 BOLT(10X75) |
09103-10304-000 |
US $2.24 |
||
|
11
|
11
09108-10158-000
BOLT,STUD
|
09108-10158-000 |
— | ||
|
12
|
12
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
24700-79KT0-000
OVERHAUL KIT,AT
NOT ILLUSTRATED |
24700-79KT0-000 |
— |
