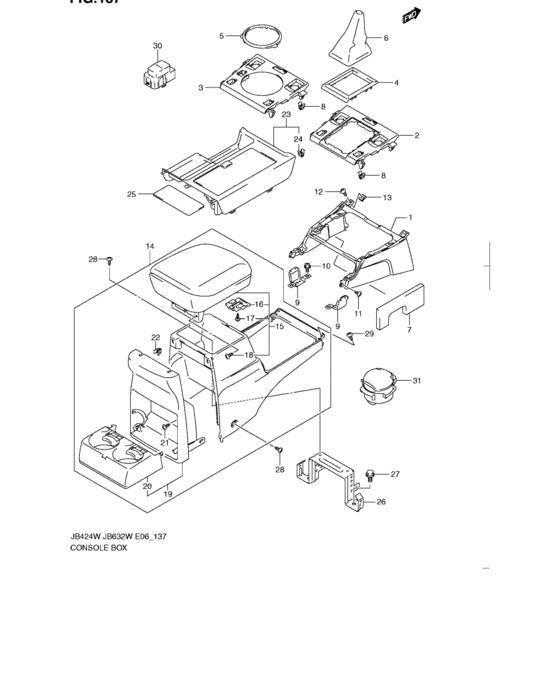

Console box (CONSOLE BOX) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75811-65J00-5PK BOX,FLOOR CONSOLE FR |
75811-65J00-5PK |
US $54.10 |
||
|
3
|
3
75812-65J00-ZCA GARNISH,GR SHIFT ATAT:W/FABRIC SEAT |
75812-65J00-ZCA |
US $127.20 |
||
|
3
|
3
75812-65J00-T9T GARNISH,GR SHIFT ATAT:W/LEATHER SEAT |
75812-65J00-T9T |
US $249.60 |
||
|
5
|
5
75813-65J00-0PG RING,GR SHIFT ATAT |
75813-65J00-0PG |
from US $35.96 |
||
|
7
|
7
75813-65D00-000 SILENCER,CONSOLE BOX SIDE |
75813-65D00-000 |
US $5.48 |
||
|
8
|
8
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
9
|
9
75861-65J00-000 BRACKET,FLOOR CONSOLE BOX,CTR |
75861-65J00-000 |
US $6.15 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
12
|
12
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
13
|
13
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
14
|
14
75910-65J01-5PK
Base comp,floor console rear
|
75910-65J01-5PK |
— | ||
| replacement | |||||
|
14
|
14
75910-65J02-5PK BASE,FLOOR CONSOLE RR |
75910-65J02-5PK |
US $504 |
||
|
15
|
15
75940-65J00-5PK
Armrest comp,rear console
|
75940-65J00-5PK |
— | ||
| replacement | |||||
|
15
|
15
75940-65J01-5PK ARMREST,RR CONSOLE |
75940-65J01-5PK |
US $318.32 |
||
|
16
|
16
75941-65J00-000 LOCK,CONSOLE DR |
75941-65J00-000 |
from US $13.30 |
||
|
17
|
17
75942-65J00-000 SCREW |
75942-65J00-000 |
US $11.92 |
||
|
18
|
18
75943-65J00-000 SCREW |
75943-65J00-000 |
US $11.92 |
||
|
19
|
19
75950-65J00-5PK HOLDER,CUP RR |
75950-65J00-5PK |
US $122.91 |
||
| replacement | |||||
|
19
|
19
75951-65J00-5PK HOLDER,CUP |
75951-65J00-5PK |
US $96.42 |
||
|
20
|
20
75951-65J00-5PK HOLDER,CUP |
75951-65J00-5PK |
US $96.42 |
||
|
21
|
21
75942-65J00-000 SCREW |
75942-65J00-000 |
US $11.92 |
||
|
22
|
22
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
23
|
23
75920-65J00-5PK PANEL,CONSOLE RR,R |
75920-65J00-5PK |
US $202.40 |
||
|
24
|
24
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
25
|
25
75971-65J00-000 SHEET,CONSOLE BOX INNER |
75971-65J00-000 |
US $4.67 |
||
|
26
|
26
75961-65J00-000 BRACKET,FLOOR CONSOLE BOX,RR |
75961-65J00-000 |
US $13.73 |
||
|
27
|
27
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
28
|
28
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
29
|
29
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
30
|
30
37285-50J01-000 CAP,OPTION SWITCH HOLEN/SEAT HEATER |
37285-50J01-000 |
US $3.35 |
||
|
31
|
31
89810-65J01-5PK ASHTRAY,FR |
89810-65J01-5PK |
US $47.12 |
||
