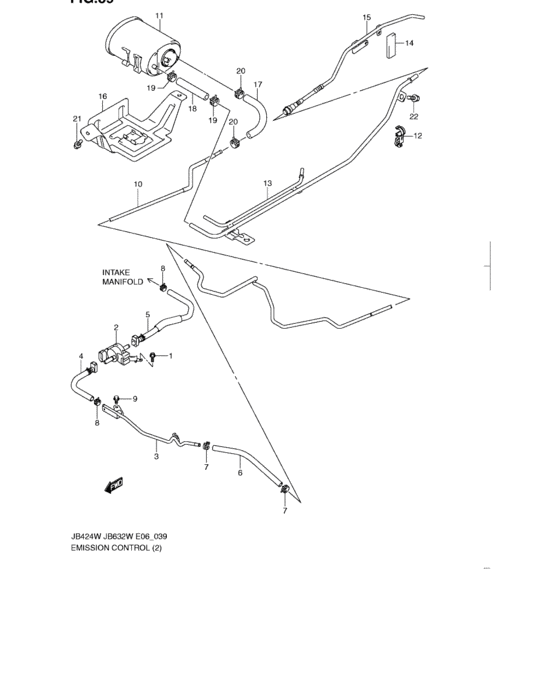

Emission control (JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1655B-78J00-000
BOLT,6X16
|
1655B-78J00-000 |
— | ||
|
2
|
2
18117-78J00-000 VALVE,EVAP CSTR PURGE |
18117-78J00-000 |
US $263.12 |
||
|
3
|
3
18352-79K00-000
PIPE,PURGE
|
18352-79K00-000 |
— | ||
|
4
|
4
18562-79K00-000
HOSE,PURGE PIPE TO VSV
|
18562-79K00-000 |
— | ||
|
5
|
5
18563-79K00-000
HOSE,PURGE VSV TO MANF
|
18563-79K00-000 |
— | ||
|
6
|
6
09355-70129-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->250 |
09355-70129-600 |
from US $22.31 |
||
|
7
|
7
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
8
|
8
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
9
|
9
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
18351-78K10-000 PIPE,PURGE |
18351-78K10-000 |
US $32.20 |
||
|
11
|
11
18560-76A31-000 CANISTER |
18560-76A31-000 |
from US $84.02 |
||
|
12
|
12
18565-65J20-000 CLAMP,SUCTION PIPE |
18565-65J20-000 |
US $1.91 |
||
|
13
|
13
18566-65J01-000 PIPE,CSTR AIR SUCTION |
18566-65J01-000 |
US $49.31 |
||
|
14
|
14
18568-65J20-000 PACKING,EVAP SUCTION PIPE |
18568-65J20-000 |
US $6.62 |
||
|
15
|
15
18569-78K10-000 PIPE,CSTR AIR SUCTION |
18569-78K10-000 |
US $41.95 |
||
|
16
|
16
18570-65J00-000 BRACKET,CANISTER |
18570-65J00-000 |
US $48.80 |
||
|
17
|
17
09355-56128-380
Hose,5.6x12.4x380
L:380->170 |
09355-56128-380 |
— | ||
| replacement | |||||
|
17
|
17
09355-56128-600 HOSE(5.6X12.4X600)L:380->170 |
09355-56128-600 |
US $8.64 |
||
|
18
|
18
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->140 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
18
|
18
44421-12FR0-000 HOSEL:600->140 |
44421-12FR0-000 |
from US $16.64 |
||
|
19
|
19
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
21
|
21
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
22
|
22
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
