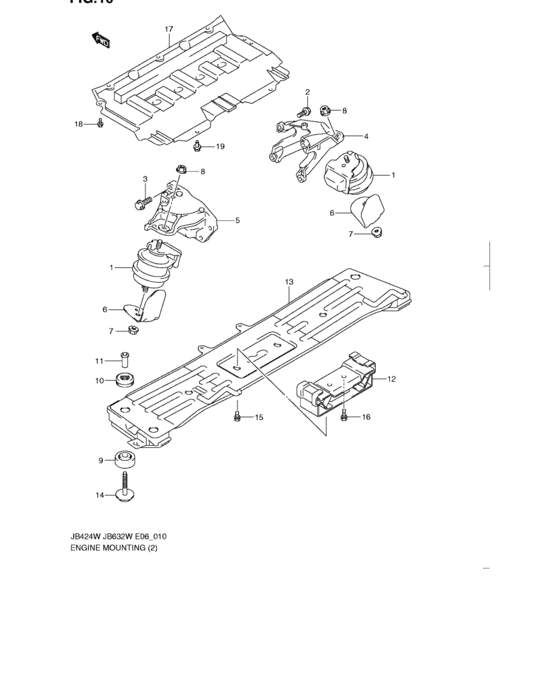

Engine mounting (JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-79K00-000
Mounting comp,engine front
|
11610-79K00-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-79K01-000 MOUNTING,ENG FR |
11610-79K01-000 |
from US $242.10 |
||
|
2
|
2
11617-79K00-000
BOLT,10X35
|
11617-79K00-000 |
— | ||
|
3
|
3
11617-79K00-000
BOLT,10X35
|
11617-79K00-000 |
— | ||
|
4
|
4
11641-79K00-000
BRACKET,ENG FR MTG,R
|
11641-79K00-000 |
— | ||
|
5
|
5
11651-79K00-000
BRACKET,ENG FR MTG,L
|
11651-79K00-000 |
— | ||
|
6
|
6
11681-79K00-000
Cover,front mtg
|
11681-79K00-000 |
— | ||
| replacement | |||||
|
6
|
6
11681-80K50-000
COVER,FR MTG
|
11681-80K50-000 |
— | ||
|
7
|
7
09159-10116-000 NUT |
09159-10116-000 |
from US $1.28 |
||
|
8
|
8
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
9
|
9
11684-65J00-000 CUSHION,MTG MEMBER LOWER |
11684-65J00-000 |
US $10.08 |
||
|
10
|
10
11686-65J00-000 CUSHION,MTG MEMBER UPPER |
11686-65J00-000 |
from US $3.87 |
||
|
11
|
11
11687-67H00-000 COLLAR,MTG MEMBER |
11687-67H00-000 |
US $3.36 |
||
|
12
|
12
11710-65J00-000 MOUNTING,ENG RR |
11710-65J00-000 |
from US $96.48 |
||
|
13
|
13
11730-78K00-000
Member comp,eng rear mtg
|
11730-78K00-000 |
— | ||
| replacement | |||||
|
13
|
13
11730-78K10-000 MEMBER,ENG RR MTG |
11730-78K10-000 |
from US $244.55 |
||
|
14
|
14
09116-10132-000 BOLT(10X76) |
09116-10132-000 |
US $28 |
||
|
15
|
15
01560-1016A-000 Bolt |
01560-1016A-000 |
US $0.96 |
||
|
16
|
16
01560-1025A-000 Bolt |
01560-1025A-000 |
US $1.07 |
||
|
17
|
17
13180-65J00-000 COVER,ENGINE UNDER |
13180-65J00-000 |
from US $30.89 |
||
|
18
|
18
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.96 |
||
|
19
|
19
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
