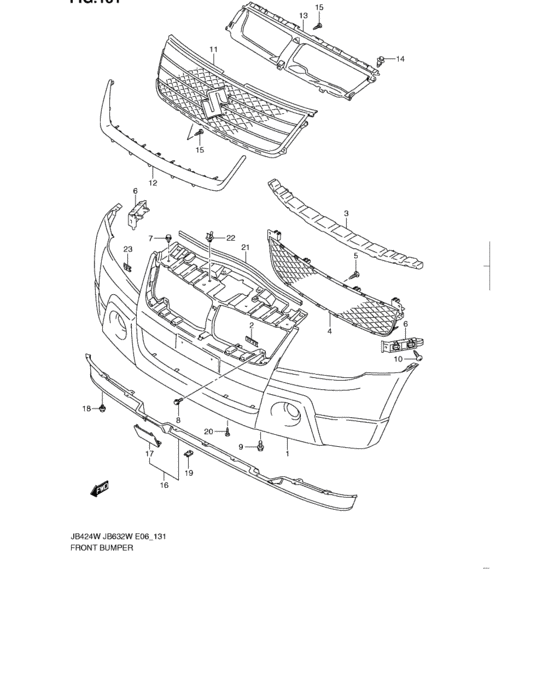

Front bumper (FRONT BUMPER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-77K40-799 BUMPER,FR(PRIMARY)N/FOG LAMP,N/HEAD LAMP WASHER,PAINT TO MATCH |
71711-77K40-799 |
from US $566.72 |
||
|
1
|
1
71711-77K60-799 BUMPER,FR(PRIMARY)W/FOG LAMP,N/HEAD LAMP WASHER,PAINT TO MATCH |
71711-77K60-799 |
US $682.88 |
||
|
1
|
1
71711-77K70-799
BUMPER,FR(PRIMARY)
W/FOG LAMP,W/HEAD LAMP WASHER,PAINT TO MATCH |
71711-77K70-799 |
— | ||
|
2
|
2
71771-56B00-000 RETAINER,FR LICENSE PLATE |
71771-56B00-000 |
from US $4.41 |
||
|
3
|
3
71761-77K00-000 ABSORBER,FR BUMPER |
71761-77K00-000 |
from US $36.63 |
||
|
4
|
4
71721-77K00-000 NET,FR BUMPER |
71721-77K00-000 |
from US $74.63 |
||
|
5
|
5
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
71731-65J00-000 HOLDER,FR BPR SIDE |
71731-65J00-000 |
US $9.28 |
||
|
7
|
7
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
71741-77K00-38B GRILLE,RDTR |
71741-77K00-38B |
from US $107.46 |
||
|
12
|
12
71742-77K00-0PG
Garnish,rdtr grille(chrome)
|
71742-77K00-0PG |
— | ||
| replacement | |||||
|
12
|
12
71742-77K01-0PG GARNISH,RDTR GRL |
71742-77K01-0PG |
from US $104 |
||
|
13
|
13
71743-65J00-000 COVER,RDTR GRILLE |
71743-65J00-000 |
US $25.58 |
||
|
14
|
14
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
15
|
15
09132-04036-000 SCREW(4X12) |
09132-04036-000 |
US $0.80 |
||
|
16
|
16
71750-65J03-000 SKIRT,FR AIR DAM |
71750-65J03-000 |
from US $66.69 |
||
|
17
|
17
71752-65J00-000 CAP,FR AIR DAM |
71752-65J00-000 |
from US $8.12 |
||
|
18
|
18
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
19
|
19
09148-05047-000 NUT |
09148-05047-000 |
from US $0.96 |
||
|
20
|
20
09132-05046-000 SCREW(5X12) |
09132-05046-000 |
from US $1.01 |
||
|
21
|
21
77312-65J00-000 SEAL,FRONT HOOD |
77312-65J00-000 |
from US $20.09 |
||
|
22
|
22
09403-07333-000 CLAMP |
09403-07333-000 |
from US $1.60 |
||
|
23
|
23
09148-05047-000 NUTW/HEAD LAMP WASHER |
09148-05047-000 |
from US $0.96 |
||
