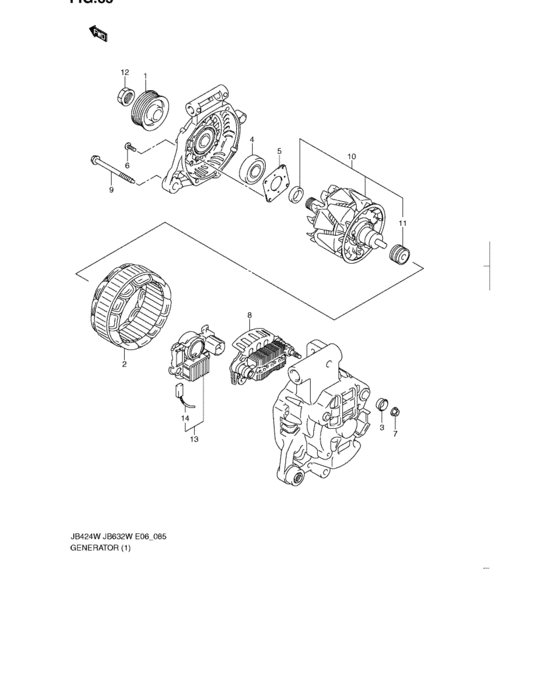

Generator (JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31400-78K00-000
Generator assy
|
31400-78K00-000 |
— | ||
| replacement | |||||
|
|
31400-78K13-000 GENERATOR ASSY |
31400-78K13-000 |
US $693.44 |
||
|
1
|
1
31171-78K00-000
Pulley
|
31171-78K00-000 |
— | ||
|
2
|
2
31410-65J10-000 STATOR ASSY |
31410-65J10-000 |
US $360.64 |
||
|
3
|
3
31471-84A00-000 INSULATOR |
31471-84A00-000 |
US $7.62 |
||
|
4
|
4
31582-50F20-000
Bearing,front
|
31582-50F20-000 |
— | ||
| replacement | |||||
|
4
|
4
31582-50F30-000 BEARING,FRONT |
31582-50F30-000 |
from US $27.45 |
||
|
5
|
5
31585-65J10-000 RETAINER |
31585-65J10-000 |
US $7.36 |
||
|
6
|
6
31586-86520-000 SCREW SET |
31586-86520-000 |
US $5.30 |
||
|
7
|
7
31512-84A00-000 NUT |
31512-84A00-000 |
US $6.40 |
||
|
8
|
8
31621-78K00-000 RECTIFIER |
31621-78K00-000 |
US $252.08 |
||
|
9
|
9
31651-86520-000 SCREW SET |
31651-86520-000 |
US $5.78 |
||
|
10
|
10
31710-78K00-000
ROTOR ASSY
|
31710-78K00-000 |
— | ||
| replacement | |||||
|
10
|
10
31710-78K01-000 ROTOR ASSY |
31710-78K01-000 |
US $401.28 |
||
|
11
|
11
31612-60A10-000
Bearing,rr
|
31612-60A10-000 |
— | ||
| replacement | |||||
|
11
|
11
31612-60A11-000 BEARING,REAR |
31612-60A11-000 |
US $24 |
||
|
12
|
12
31775-50F20-000 NUT |
31775-50F20-000 |
US $2.72 |
||
|
13
|
13
32500-80J10-000 REGULATOR ASSY |
32500-80J10-000 |
US $303.60 |
||
|
14
|
14
31631-60F30-000 BRUSH SET |
31631-60F30-000 |
US $13.28 |
||
