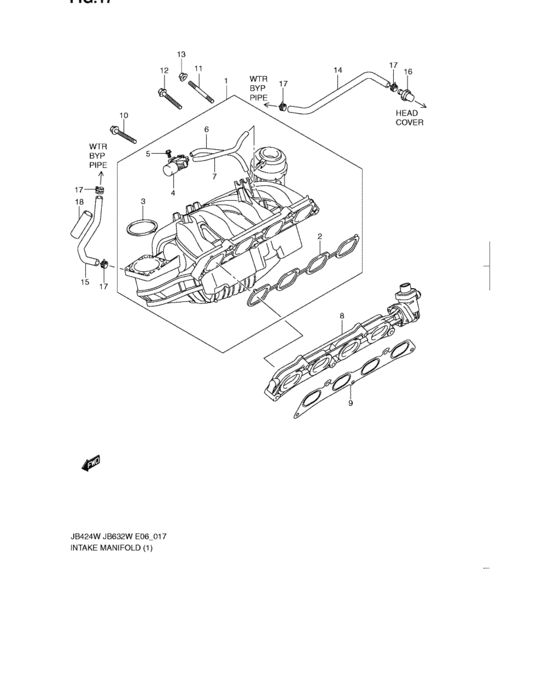

Intake manifold (JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-78K00-000 MANIFOLD,INTK |
13110-78K00-000 |
from US $498.89 |
||
|
2
|
2
13119-78K00-000 GASKET,INTK MANF |
13119-78K00-000 |
from US $18.95 |
||
|
3
|
3
13421-78K00-000 GASKET,THROTTLE BODY |
13421-78K00-000 |
from US $8.06 |
||
|
4
|
4
13481-78K00-000 VALVE ASSY,VACUUM SWITCHING |
13481-78K00-000 |
from US $66.24 |
||
|
5
|
5
13482-78K00-000 BOLT,VSV BRKT |
13482-78K00-000 |
US $2.69 |
||
|
6
|
6
13483-78K00-000 HOSE,VACUUM |
13483-78K00-000 |
US $5.92 |
||
|
7
|
7
13484-78K00-000 HOSE,VACUUM NO.2 |
13484-78K00-000 |
US $5.92 |
||
|
8
|
8
13460-78K00-000
VALVE ASSY,TUMBLE CONTROL
|
13460-78K00-000 |
— | ||
| replacement | |||||
|
8
|
8
13460-78K01-000 VALVE ASSY,TUMBLE CONTROL |
13460-78K01-000 |
US $436.48 |
||
|
9
|
9
13469-78K00-000 GASKET,TUMBLE CONTROL VALVE |
13469-78K00-000 |
from US $5.49 |
||
|
10
|
10
09103-08444-000 BOLT(8X65) |
09103-08444-000 |
US $23.90 |
||
|
11
|
11
01421-0865A-000 BOLT,STUD |
01421-0865A-000 |
from US $5.24 |
||
|
12
|
12
01550-0865A-000 BOLTBolt, oil pump (l) |
01550-0865A-000 |
from US $1.44 |
||
|
13
|
13
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
14
|
14
11192-78K00-000 HOSE,PCV |
11192-78K00-000 |
from US $9.46 |
||
|
15
|
15
11193-78K00-000 HOSE,PCV |
11193-78K00-000 |
US $9.46 |
||
|
16
|
16
18118-78K00-000 VALVE,PCV |
18118-78K00-000 |
from US $35.66 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
11194-78K00-000 PROTECTOR,PCV HOSE |
11194-78K00-000 |
US $5.23 |
||
