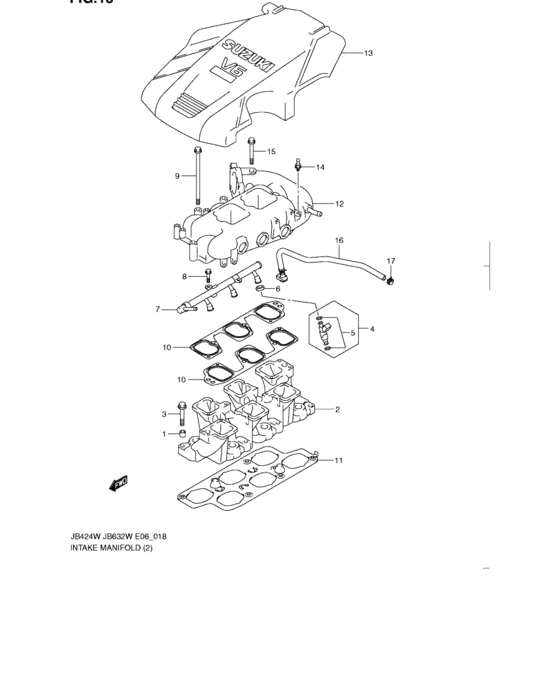

Intake manifold (JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1151F-78J00-000
RETAINER
|
1151F-78J00-000 |
— | ||
|
2
|
2
13110-78J00-000
MANIFOLD,INTK LWR
|
13110-78J00-000 |
— | ||
|
3
|
3
1312A-78J00-000
BOLT,INTK MANF LOWER
|
1312A-78J00-000 |
— | ||
|
4
|
4
15710-78J00-000 INJECTOR ASSY,FUEL |
15710-78J00-000 |
US $287.28 |
||
|
5
|
5
15712-78J00-000 SEAL SET,INJECTOR |
15712-78J00-000 |
US $48.94 |
||
|
6
|
6
15715-78J00-000
RETAINER,FUEL INJECTOR
|
15715-78J00-000 |
— | ||
|
7
|
7
15730-79K00-000
PIPE,DELIVERY
|
15730-79K00-000 |
— | ||
|
8
|
8
1753A-78J00-000
BOLT,DELIVERY PIPE
|
1753A-78J00-000 |
— | ||
|
9
|
9
1311A-78J00-000
Bolt,intk manf upr,8x190
|
1311A-78J00-000 |
— | ||
| replacement | |||||
|
9
|
9
1311A-78J01-000 BOLT,INTK MANF UPR NO.1 |
1311A-78J01-000 |
US $4.42 |
||
|
10
|
10
13119-78J10-000 GASKET,INTK MANF UPR |
13119-78J10-000 |
US $17.81 |
||
|
11
|
11
13122-78J01-000 GASKET,INTK MANF LWR |
13122-78J01-000 |
US $82.80 |
||
|
12
|
12
13140-79K00-000
MANIFOLD,INTK UPR
|
13140-79K00-000 |
— | ||
|
13
|
13
13170-79K00-000 COVER,ENGINE |
13170-79K00-000 |
US $193.60 |
||
|
14
|
14
13176-67J00-000 BOLT,ENG COVER |
13176-67J00-000 |
US $4.42 |
||
|
15
|
15
1653B-78J00-000
Bolt,intk manf upr,8x75
|
1653B-78J00-000 |
— | ||
| replacement | |||||
|
15
|
15
1653B-78J01-000
Bolt
|
1653B-78J01-000 |
— | ||
|
16
|
16
11193-79K00-000
HOSE,PCV
|
11193-79K00-000 |
— | ||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
