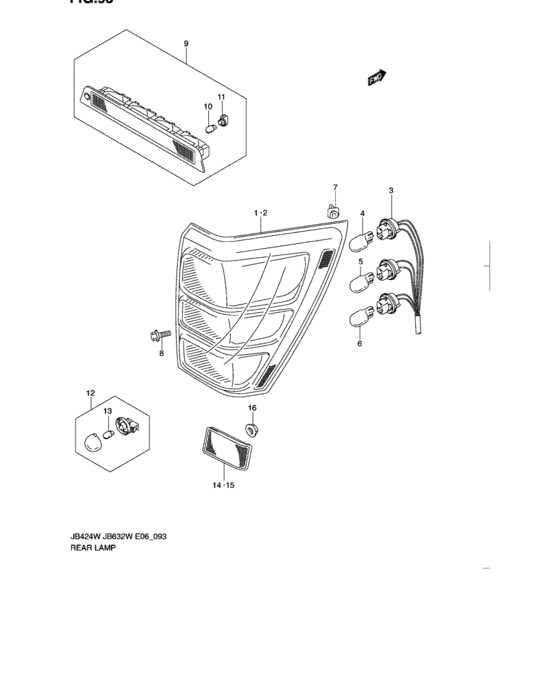

Rear lamp (REAR LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-65J21-000 LAMP UNIT,RR COMB,R |
35650-65J21-000 |
from US $137.50 |
||
|
2
|
2
35670-65J21-000 LAMP UNIT,RR COMB,L |
35670-65J21-000 |
from US $130.66 |
||
|
3
|
3
35658-65J00-000 SOCKET&CORD ASSY |
35658-65J00-000 |
US $27.42 |
||
|
4
|
4
09471-12192-000 BULB(12V21/5W) |
09471-12192-000 |
from US $3.19 |
||
|
5
|
5
09471-12202-000 BULB(12V21W/WY21W,AMBER) |
09471-12202-000 |
from US $5.76 |
||
|
6
|
6
09471-12191-000 BULB(12V21W) |
09471-12191-000 |
from US $3.87 |
||
|
7
|
7
35153-65J00-000 GROMMET,RR COMB LAMP |
35153-65J00-000 |
from US $1.60 |
||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
35810-65J01-000 LAMP ASSY,HIGH MT STOP |
35810-65J01-000 |
US $251.20 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
11
|
11
36218-74F00-000 SOCKET |
36218-74F00-000 |
US $3.35 |
||
|
12
|
12
35910-75F22-000 Lamp assy,license |
35910-75F22-000 |
from US $13.37 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
14
|
14
35950-65J01-000 REFLECTOR ASSY,REAR,R |
35950-65J01-000 |
from US $16.61 |
||
|
15
|
15
35970-65J01-000 REFLECTOR ASSY,REAR,L |
35970-65J01-000 |
from US $16.25 |
||
|
16
|
16
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
