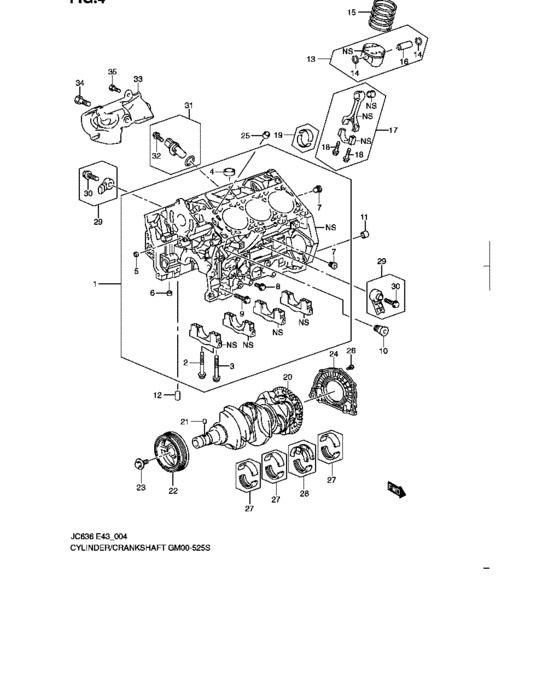

Cylinder/crankshaft (CYLINDER/CRANKSHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-78J00-000
Block assy,cylinder
|
11200-78J00-000 |
— | ||
| replacements | |||||
|
1
|
1
11000-78J20-000
ENGINE ASSY,SHORT
|
11000-78J20-000 |
— | ||
|
1
|
1
12610-78J20-000 PULLEY,CRANKSHAFT |
12610-78J20-000 |
from US $148.61 |
||
|
2
|
2
11251-78J00-000 BOLT,CRANK BRG CAP 10X102.5 |
11251-78J00-000 |
US $9.24 |
||
|
3
|
3
11253-78J00-000 BOLT,CRANK BRG CAP 8X90.26 |
11253-78J00-000 |
US $17.41 |
||
|
4
|
4
1121A-78J00-000
PLUG
|
1121A-78J00-000 |
— | ||
|
5
|
5
1111A-78J00-000
PLUG
|
1111A-78J00-000 |
— | ||
|
6
|
6
1121B-78J00-000
PLUG
|
1121B-78J00-000 |
— | ||
|
7
|
7
11214-78J00-000
PLUG,M14
|
11214-78J00-000 |
— | ||
|
8
|
8
1126A-78J00-000 BOLT,CRANK BRG CAP 8X23.2 |
1126A-78J00-000 |
US $4.38 |
||
|
9
|
9
1126B-78J00-000 BOLT,CRANK BRG CAP 8X50 |
1126B-78J00-000 |
US $4.71 |
||
|
10
|
10
1111B-78J01-000
PLUG,M20
|
1111B-78J01-000 |
— | ||
|
11
|
11
1121C-78J00-000
PIN
|
1121C-78J00-000 |
— | ||
|
12
|
12
1151H-78J00-000
PIN,DOWEL
|
1151H-78J00-000 |
— | ||
|
13
|
13
12100-78J00-000 PISTON SET |
12100-78J00-000 |
from US $146.09 |
||
|
14
|
14
12152-78J00-000 CIRCLIP,PISTON PIN |
12152-78J00-000 |
US $32.02 |
||
|
15
|
15
12151-78J00-000 PIN,PISTON |
12151-78J00-000 |
US $10.67 |
||
|
16
|
16
12140-78J00-000 RING SET,PISTON |
12140-78J00-000 |
from US $58.95 |
||
|
17
|
17
12160-78J01-000 CONNROD ASSY |
12160-78J01-000 |
from US $96.82 |
||
|
18
|
18
12163-78J00-000
BOLT,CONNROD
|
12163-78J00-000 |
— | ||
|
19
|
19
12180-78J00-000 BEARING SET,CONNROD |
12180-78J00-000 |
from US $42.59 |
||
|
20
|
20
12220-78J00-000
Crankshaft
|
12220-78J00-000 |
— | ||
| replacements | |||||
|
20
|
20
12180-78J20-000 BEARING SET,CONNROD |
12180-78J20-000 |
US $19.69 |
||
|
20
|
20
12220-78J20-000
CRANKSHAFT
|
12220-78J20-000 |
— | ||
|
20
|
20
12340-78J20-000 BEARING SET,CRANKSHAFT NO.1 |
12340-78J20-000 |
US $30.18 |
||
|
20
|
20
12350-78J20-000 BEARING SET,CRANKSHAFT NO.2 |
12350-78J20-000 |
US $41.95 |
||
|
20
|
20
12610-78J20-000 PULLEY,CRANKSHAFT |
12610-78J20-000 |
from US $148.61 |
||
|
21
|
21
1222A-78J00-000
PIN,DOWEL
|
1222A-78J00-000 |
— | ||
|
22
|
22
12610-78J00-000 PULLEY,CRANKSHAFT |
12610-78J00-000 |
US $237.36 |
||
|
23
|
23
1261A-78J01-000 BOLT,CRANKSHAFT PULLEY |
1261A-78J01-000 |
US $27.97 |
||
|
24
|
24
11340-78J00-000
Housing,crank rear oil seal
|
11340-78J00-000 |
— | ||
| replacement | |||||
|
24
|
24
11340-78J20-000 SEAL,CRANKSHAFT RR |
11340-78J20-000 |
from US $60.32 |
||
|
25
|
25
1111C-78J00-000
PIN,CYLINDER HEAD DOWEL
|
1111C-78J00-000 |
— | ||
|
26
|
26
1151J-78J00-000
BOLT,6X20
|
1151J-78J00-000 |
— | ||
|
27
|
27
12340-78J00-000
Bearing set,crankshaft no.1
|
12340-78J00-000 |
— | ||
| replacement | |||||
|
27
|
27
12340-78J20-000 BEARING SET,CRANKSHAFT NO.1 |
12340-78J20-000 |
US $30.18 |
||
|
28
|
28
12350-78J00-000
Bearing set,crankshaft no.2
|
12350-78J00-000 |
— | ||
| replacement | |||||
|
28
|
28
12350-78J20-000 BEARING SET,CRANKSHAFT NO.2 |
12350-78J20-000 |
US $41.95 |
||
|
29
|
29
18640-78J00-000 SENSOR ASSY,KNOCK |
18640-78J00-000 |
US $102.30 |
||
|
30
|
30
1653A-78J00-000
BOLT,KNOCK SENSOR 8X40
|
1653A-78J00-000 |
— | ||
|
31
|
31
33220-78J01-000 SENSOR ASSY,CRANK POSITION |
33220-78J01-000 |
US $79.12 |
||
|
32
|
32
33225-78J01-000 BOLT,CRANK SENSOR |
33225-78J01-000 |
US $13.73 |
||
|
33
|
33
14120-78J00-000
COVER,EXH MANF
|
14120-78J00-000 |
— | ||
|
34
|
34
14122-78J00-000
Bolt,10x30
|
14122-78J00-000 |
— | ||
| replacement | |||||
|
34
|
34
14122-78J01-000
BOLT,10X30
|
14122-78J01-000 |
— | ||
|
35
|
35
14123-78J00-000
BOLT,6X20
|
14123-78J00-000 |
— | ||
