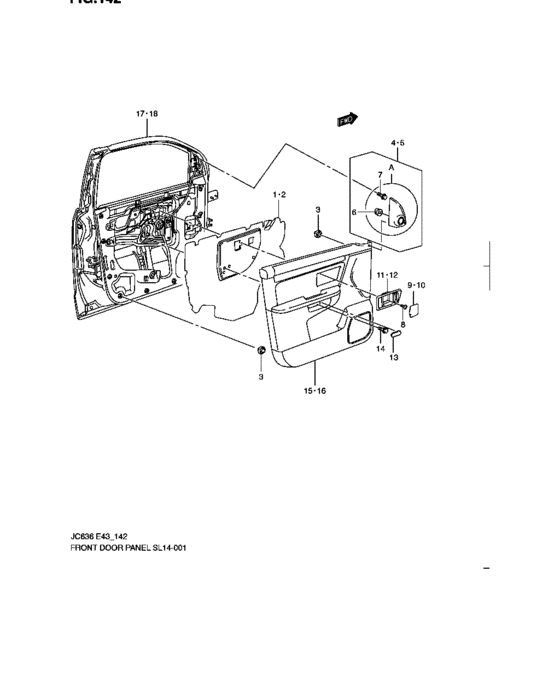

Front door trim (FRONT DOOR TRIM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83911-78J10-000
Cover, fr dr sealing rh
|
83911-78J10-000 |
— | ||
|
2
|
2
83912-78J10-000
Cover, fr dr sealing lh
|
83912-78J10-000 |
— | ||
|
3
|
3
83721-78J00-000
CLIP
|
83721-78J00-000 |
— | ||
|
4
|
4
39239-78J11-000
PANEL,SPEAKER,R
BASE |
39239-78J11-000 |
— | ||
|
4
|
4
39239-78J21-000
PANEL,SPEAKER R
UPPER,UPPER SUNROOF |
39239-78J21-000 |
— | ||
|
5
|
5
39239-78J01-000
PANEL,SPEAKER,L
BASE |
39239-78J01-000 |
— | ||
|
5
|
5
39239-78J31-000
PANEL,SPEAKER L
UPPER,UPPER SUNROOF |
39239-78J31-000 |
— | ||
|
6
|
6
39102-78J20-000
SPEAKER ASSY,TWEETER
BASE |
39102-78J20-000 |
— | ||
|
7
|
7
76179-78J00-000
Clip
|
76179-78J00-000 |
— | ||
| replacement | |||||
|
7
|
7
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
8
|
8
83713-78J00-000
SCREW
|
83713-78J00-000 |
— | ||
|
9
|
9
83716-78J01-000
COVER,INSIDE HANDLE
|
83716-78J01-000 |
— | ||
|
9
|
9
83716-78J11-000
COVER,INSIDE HANDLE
|
83716-78J11-000 |
— | ||
|
10
|
10
83717-78J20-000
COVER,INSIDE HANDLE
|
83717-78J20-000 |
— | ||
|
10
|
10
83717-78J11-000
COVER,INSIDE HANDLE
|
83717-78J11-000 |
— | ||
|
11
|
11
83718-78J20-000
BEZEL,INSIDE HANDLE,R
|
83718-78J20-000 |
— | ||
|
11
|
11
83718-78J30-000
BEZEL,INSIDE HANDLE,R
|
83718-78J30-000 |
— | ||
|
12
|
12
83717-78J20-000
COVER,INSIDE HANDLE
|
83717-78J20-000 |
— | ||
|
12
|
12
83719-78J30-000
BEZEL,INSIDE HANDLE,L
|
83719-78J30-000 |
— | ||
|
13
|
13
83715-78J20-000
CAP,DR TRIM
|
83715-78J20-000 |
— | ||
|
13
|
13
83715-78J30-000 CAP,DR TRIM |
83715-78J30-000 |
US $8.46 |
||
|
14
|
14
83714-78J01-000
SCREW
|
83714-78J01-000 |
— | ||
|
15
|
15
83720-78J31-000
Trim, door lh
W/6 SPEAKER |
83720-78J31-000 |
— | ||
|
15
|
15
83720-78J01-000
Trim, door lh
W/6 SPEAKER |
83720-78J01-000 |
— | ||
|
15
|
15
83720-78J80-000
Trim, door lh
W/7 SPEAKER |
83720-78J80-000 |
— | ||
|
15
|
15
83720-78J90-000
Trim, door lh
W/7 SPEAKER |
83720-78J90-000 |
— | ||
|
16
|
16
83710-78J31-000
Trim, door rh
W/6 SPEAKER |
83710-78J31-000 |
— | ||
|
16
|
16
83710-78J01-000
Trim, door rh
W/6 SPEAKER |
83710-78J01-000 |
— | ||
|
16
|
16
83710-78J80-000
Trim, door rh
W/7 SPEAKER |
83710-78J80-000 |
— | ||
|
16
|
16
83710-78J90-000
Trim, door rh
W/7 SPEAKER |
83710-78J90-000 |
— | ||
|
17
|
17
68001-78J02-000
PANEL ASSY,FRONT DOOR,R
|
68001-78J02-000 |
— | ||
|
18
|
18
68002-78J02-000 PANEL ASSY,FRONT DOOR,L |
68002-78J02-000 |
US $577.28 |
||
