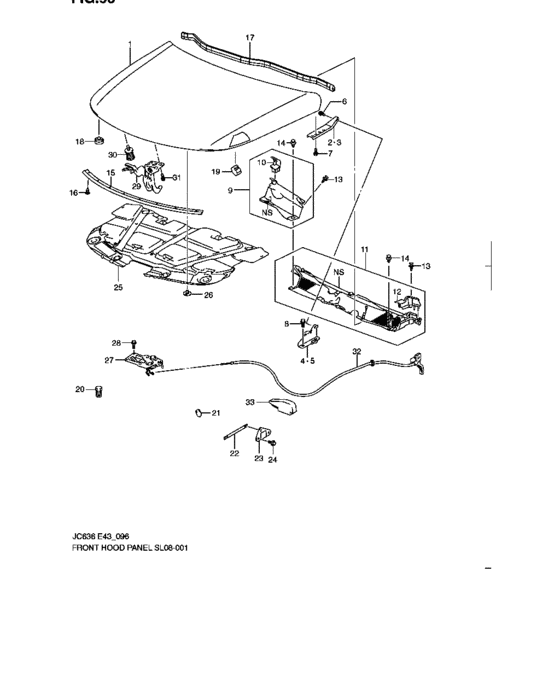

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-78J00-000 PANEL,FRONT HOOD |
57300-78J00-000 |
US $503.36 |
||
|
2
|
2
57412-78J00-000
HINGE,FR HOOD UPR,R
|
57412-78J00-000 |
— | ||
|
3
|
3
57422-78J00-000 HINGE,FR HOOD UPR,L |
57422-78J00-000 |
US $31.28 |
||
|
4
|
4
57411-78J00-000
HINGE,FR HOOD LWR,R
|
57411-78J00-000 |
— | ||
|
5
|
5
57421-78J00-000
HINGE,FR HOOD LWR,L
|
57421-78J00-000 |
— | ||
|
6
|
6
57419-78J00-000
Bolt
|
57419-78J00-000 |
— | ||
|
7
|
7
28223-78J00-000
BOLT,8X20
|
28223-78J00-000 |
— | ||
|
8
|
8
28174-78J00-000
BOLT,8X25
|
28174-78J00-000 |
— | ||
|
9
|
9
59710-78J02-000
PANEL,COWL TOP,R
|
59710-78J02-000 |
— | ||
|
10
|
10
57430-78J00-000
COVER,HOOD HINGE,R
|
57430-78J00-000 |
— | ||
|
11
|
11
59720-78J04-000
PANEL,COWL TOP,L
|
59720-78J04-000 |
— | ||
|
12
|
12
57440-78J00-000
COVER,HOOD HINGE,L
|
57440-78J00-000 |
— | ||
|
13
|
13
59718-78J00-000
CLIP
|
59718-78J00-000 |
— | ||
|
14
|
14
59719-78J00-000
CLIP
|
59719-78J00-000 |
— | ||
|
15
|
15
72151-78J00-000
SEAL,HOOD FR
|
72151-78J00-000 |
— | ||
|
16
|
16
72159-78J00-000
CLIP
|
72159-78J00-000 |
— | ||
|
17
|
17
72341-78J00-000
SEAL,HOOD RR
|
72341-78J00-000 |
— | ||
|
18
|
18
72372-78J20-000
CUSHION,HOOD SIDE
|
72372-78J20-000 |
— | ||
|
19
|
19
72372-78J11-000
CUSHION,HOOD SIDE
|
72372-78J11-000 |
— | ||
|
20
|
20
72372-78J00-000
CUSHION,HOOD FR
|
72372-78J00-000 |
— | ||
|
21
|
21
82711-78J00-000
CUSHION,FR HOOD
|
82711-78J00-000 |
— | ||
|
22
|
22
72442-78J01-000
STAY,FRONT HOOD
|
72442-78J01-000 |
— | ||
|
23
|
23
72449-78J00-000
BRACKET,HOOD STAY
|
72449-78J00-000 |
— | ||
|
24
|
24
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
24
|
24
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
25
|
25
75270-78J01-000
SILENCER,FRONT HOOD
|
75270-78J01-000 |
— | ||
|
26
|
26
75279-78J00-000
CLIP
|
75279-78J00-000 |
— | ||
|
27
|
27
82130-78J01-000
PLATE,HOOD LOCK
|
82130-78J01-000 |
— | ||
|
28
|
28
89221-78J01-000
Bolt
|
89221-78J01-000 |
— | ||
|
29
|
29
82120-78J01-000 LATCH,HOOD SECONDARY |
82120-78J01-000 |
US $61.46 |
||
|
30
|
30
82150-78J00-000
Striker, hood
|
82150-78J00-000 |
— | ||
| replacement | |||||
|
30
|
30
82150-78J01-000
STRIKER,HOOD
|
82150-78J01-000 |
— | ||
|
31
|
31
89221-78J01-000
Bolt
|
89221-78J01-000 |
— | ||
|
32
|
32
82160-78J01-000
CABLE,HOOD LATCH RELEASE
|
82160-78J01-000 |
— | ||
|
33
|
33
72430-78J00-000
GARNISH,HOOD
|
72430-78J00-000 |
— | ||
