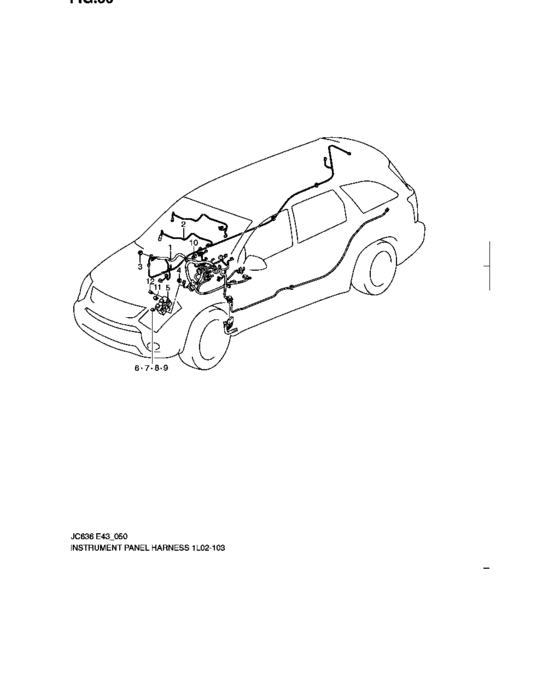

Instrument panel harness (INSTRUMENT PANEL HARNESS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36620-78J21-000
HARNESS ASSY,I/P
BASE |
36620-78J21-000 |
— | ||
|
1
|
1
36620-78J31-000
HARNESS ASSY,I/P
UPPER |
36620-78J31-000 |
— | ||
|
1
|
1
36620-78J50-000
HARNESS ASSY,I/P
UPPER SUNROOF |
36620-78J50-000 |
— | ||
|
2
|
2
39270-78J00-000
FEEDER,ANT I/P
|
39270-78J00-000 |
— | ||
|
3
|
3
56118-78J00-000
NUT
|
56118-78J00-000 |
— | ||
|
4
|
4
33627-78J00-000
NUT,M8X1.25X6
|
33627-78J00-000 |
— | ||
|
5
|
5
36710-78J04-000
Box assy, junction
BASE |
36710-78J04-000 |
— | ||
| replacement | |||||
|
5
|
5
36710-78J05-000
BOX ASSY,JUNCTION
BASE |
36710-78J05-000 |
— | ||
|
5
|
5
36710-78J13-000
Box assy, junction
UPPER,UPPER SUNROOF |
36710-78J13-000 |
— | ||
| replacement | |||||
|
5
|
5
36710-78J14-000
BOX ASSY,JUNCTION
UPPER,UPPER SUNROOF |
36710-78J14-000 |
— | ||
|
6
|
6
30001-78J00-25A
FUSE,25A
|
30001-78J00-25A |
— | ||
|
7
|
7
30001-78J01-20A
FUSE,20A
|
30001-78J01-20A |
— | ||
|
8
|
8
30001-78J10-15A
FUSE,15A
|
30001-78J10-15A |
— | ||
|
9
|
9
30001-78J00-10A
FUSE,10A
|
30001-78J00-10A |
— | ||
|
10
|
10
38860-78J31-000
RELAY
|
38860-78J31-000 |
— | ||
|
11
|
11
38860-78J01-000 RELAY |
38860-78J01-000 |
US $10.64 |
||
|
12
|
12
38860-78J40-000
BREAKER
|
38860-78J40-000 |
— | ||
