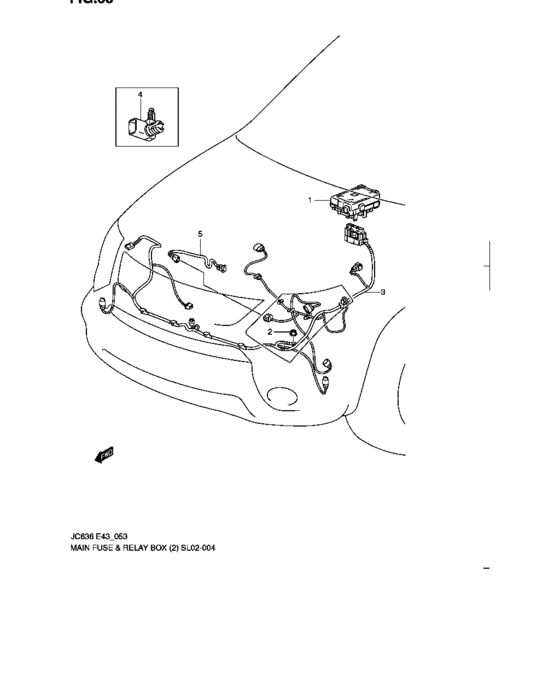

Main fuse & relay box (2) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36730-78J14-000
Box assy,main fuse & relay
|
36730-78J14-000 |
— | ||
| replacement | |||||
|
1
|
1
36730-78J15-000
BOX ASSY,MAIN FUSE&RELAY
|
36730-78J15-000 |
— | ||
|
2
|
2
36654-78J00-000
NUT,HARNESS GND
|
36654-78J00-000 |
— | ||
|
3
|
3
36613-78J20-000
Harness,fwd lamp wiring
BASE |
36613-78J20-000 |
— | ||
| replacement | |||||
|
3
|
3
36613-78J10-000
HARNESS,FWD LAMP WIRING
BASE |
36613-78J10-000 |
— | ||
|
3
|
3
36613-78J30-000
Harness, head lamp
UPPER,UPPER SUNROOF |
36613-78J30-000 |
— | ||
| replacement | |||||
|
3
|
3
36613-78J10-000
HARNESS,FWD LAMP WIRING
UPPER,UPPER SUNROOF |
36613-78J10-000 |
— | ||
|
4
|
4
13650-78J10-000 SENSOR,AIR TEMP |
13650-78J10-000 |
US $9.27 |
||
|
5
|
5
17121-78J00-000
CONNECTOR,FAN MOTOR
FOR FAN MOTOR "BOSCH" |
17121-78J00-000 |
— | ||
|
5
|
5
17121-78J10-000 CONNECTOR,FAN MOTORFOR FAN MOTOR "SIEMENS" |
17121-78J10-000 |
US $79.49 |
||
