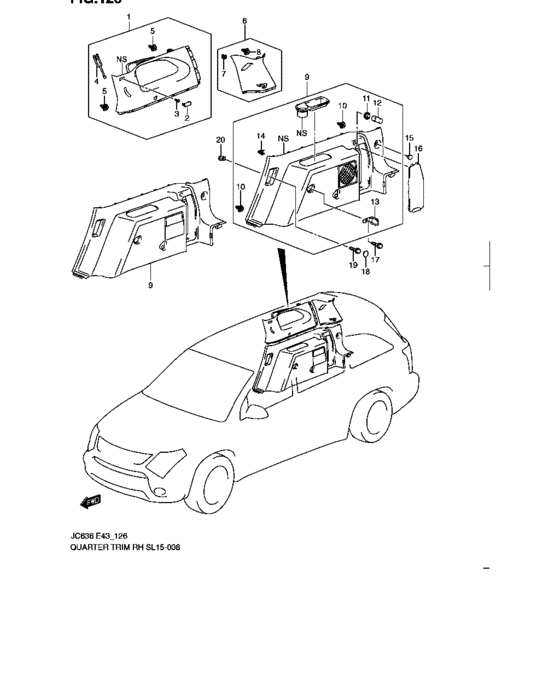

Quarter trim rh (QUARTER TRIM RH) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76280-78J02-000
TRIM,RR QTR UPR,L(GRAY)
|
76280-78J02-000 |
— | ||
|
1
|
1
76280-78J12-000
TRIM,RR QTR UPR,L(BEIGE)
|
76280-78J12-000 |
— | ||
|
2
|
2
76284-78J00-000
CAP,RR QTR TRIM UPPER,R(GRAY)
|
76284-78J00-000 |
— | ||
|
2
|
2
76284-78J10-000
CAP,RR QTR TRIM UPR,R(BEIGE)
|
76284-78J10-000 |
— | ||
|
3
|
3
75946-78J10-000
SCREW
|
75946-78J10-000 |
— | ||
|
4
|
4
76297-78J00-000
RETAINER
|
76297-78J00-000 |
— | ||
|
5
|
5
83761-78J00-000
CLIP
|
83761-78J00-000 |
— | ||
|
6
|
6
76289-78J50-000
TRIM,RR QTR UPPER RR,R
|
76289-78J50-000 |
— | ||
|
6
|
6
76289-78J60-000
TRIM,RR QTR UPPER RR,R
|
76289-78J60-000 |
— | ||
|
7
|
7
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
7
|
7
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
8
|
8
83761-78J00-000
CLIP
|
83761-78J00-000 |
— | ||
|
9
|
9
76210-78J41-000
TRIM,RR QTR LOWER,R
7 SPEAKER,N/MAKER'S LOGO |
76210-78J41-000 |
— | ||
|
9
|
9
76210-78J80-000
TRIM,RR QTR LOWER,R(GRAY)
7 SPEAKER,W/MAKER'S LOGO |
76210-78J80-000 |
— | ||
|
9
|
9
76210-78J51-000
TRIM,RR QTR LOWER,R
7 SPEAKER,N/MAKER'S LOGO |
76210-78J51-000 |
— | ||
|
9
|
9
76210-78J90-000
TRIM,RR QTR LOWER,R(BEIGE)
7 SPEAKER,W/MAKER'S LOGO |
76210-78J90-000 |
— | ||
|
9
|
9
76210-78J61-000
TRIM,RR QTR LOWER,R
6 SPEAKER |
76210-78J61-000 |
— | ||
|
9
|
9
76210-78J71-000
TRIM,RR QTR LOWER,R
6 SPEAKER |
76210-78J71-000 |
— | ||
|
10
|
10
76271-78J00-000
CLIP
|
76271-78J00-000 |
— | ||
|
11
|
11
39410-78J00-000
Receptacle
|
39410-78J00-000 |
— | ||
| replacement | |||||
|
11
|
11
39410-78J01-000
RECEPTACLE
|
39410-78J01-000 |
— | ||
|
12
|
12
39419-78J00-000
RETAINER
|
39419-78J00-000 |
— | ||
|
13
|
13
75510-78J00-000
BRACKET,CARGO TIE
|
75510-78J00-000 |
— | ||
|
14
|
14
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
14
|
14
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
15
|
15
75488-78J00-000
RETAINER
|
75488-78J00-000 |
— | ||
|
16
|
16
76230-78J00-000
LID,TRUNK ROOM SIDE TRIM,R
|
76230-78J00-000 |
— | ||
|
16
|
16
76230-78J10-000
LID,TRUNK ROOM SIDE TRIM,R
|
76230-78J10-000 |
— | ||
|
17
|
17
75489-78J00-000
Bolt
|
75489-78J00-000 |
— | ||
|
18
|
18
76295-78J00-000
COVER,BOLT
|
76295-78J00-000 |
— | ||
|
18
|
18
76295-78J10-000
COVER,BOLT
|
76295-78J10-000 |
— | ||
|
19
|
19
71719-78J00-000
BOLT,M4.2X1.41X20
|
71719-78J00-000 |
— | ||
|
20
|
20
76229-78J01-000
NUT
|
76229-78J01-000 |
— | ||
