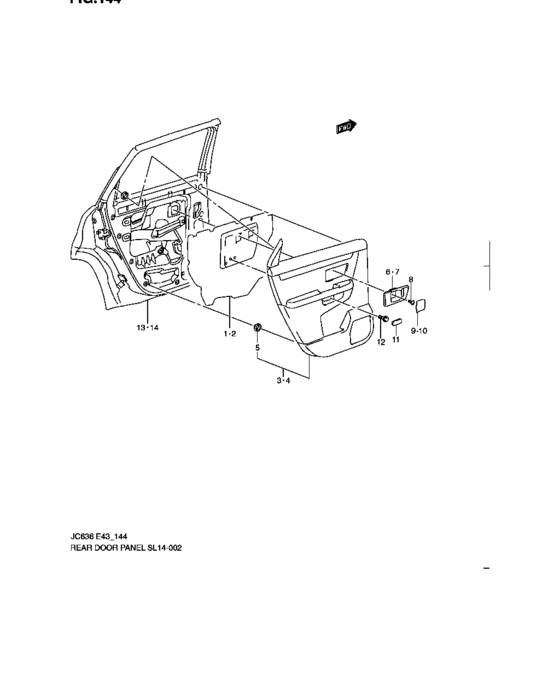

Rear door trim (REAR DOOR TRIM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83911-78J20-000
COVER,FR DR SEALING,R
|
83911-78J20-000 |
— | ||
|
2
|
2
83912-78J20-000
COVER,FR DR SEALING,L
|
83912-78J20-000 |
— | ||
|
3
|
3
83730-78J01-000
TRIM,DOOR,R
|
83730-78J01-000 |
— | ||
|
3
|
3
83730-78J31-000
Trim, door rh
|
83730-78J31-000 |
— | ||
|
4
|
4
83740-78J01-000
TRIM,DOOR,L
|
83740-78J01-000 |
— | ||
|
4
|
4
83740-78J31-000
Trim, door lh
|
83740-78J31-000 |
— | ||
|
5
|
5
83721-78J00-000
CLIP
|
83721-78J00-000 |
— | ||
|
6
|
6
83718-78J20-000
BEZEL,INSIDE HANDLE,R
|
83718-78J20-000 |
— | ||
|
6
|
6
83718-78J30-000
BEZEL,INSIDE HANDLE,R
|
83718-78J30-000 |
— | ||
|
7
|
7
83719-78J20-000 BEZEL,INSIDE HANDLE |
83719-78J20-000 |
US $14.50 |
||
|
7
|
7
83719-78J30-000
BEZEL,INSIDE HANDLE,L
|
83719-78J30-000 |
— | ||
|
8
|
8
83713-78J00-000
SCREW
|
83713-78J00-000 |
— | ||
|
9
|
9
83716-78J01-000
COVER,INSIDE HANDLE
|
83716-78J01-000 |
— | ||
|
9
|
9
83716-78J11-000
COVER,INSIDE HANDLE
|
83716-78J11-000 |
— | ||
|
10
|
10
83717-78J20-000
COVER,INSIDE HANDLE
|
83717-78J20-000 |
— | ||
|
10
|
10
83717-78J11-000
COVER,INSIDE HANDLE
|
83717-78J11-000 |
— | ||
|
11
|
11
83715-78J20-000
CAP,DR TRIM
|
83715-78J20-000 |
— | ||
|
11
|
11
83715-78J30-000 CAP,DR TRIM |
83715-78J30-000 |
US $8.46 |
||
|
12
|
12
83714-78J01-000
SCREW
|
83714-78J01-000 |
— | ||
|
13
|
13
68003-78J00-000 PANEL ASSY,REAR DOOR,R |
68003-78J00-000 |
US $608.96 |
||
|
14
|
14
68004-78J00-000
PANEL ASSY,REAR DOOR,L
|
68004-78J00-000 |
— |
