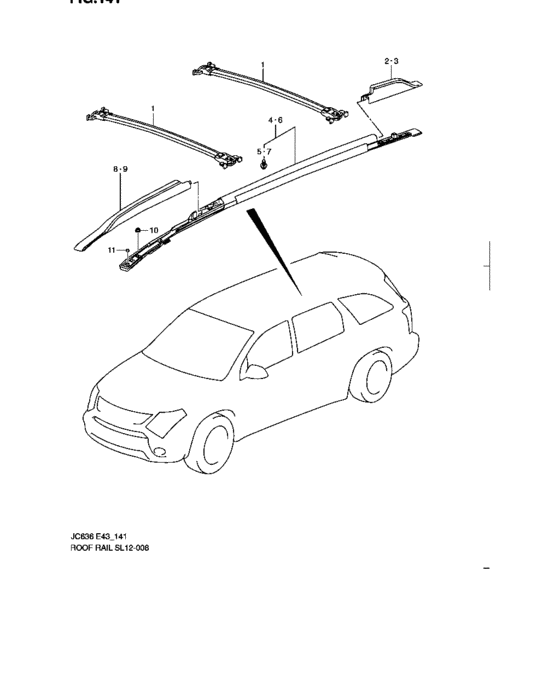

Roof rail (ROOF RAIL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Middle east
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78230-78J10-000
SLAT,LUGG CARR OTR
|
78230-78J10-000 |
— | ||
|
2
|
2
78217-78J10-000
COVER,LUGGAGE CARRIER
BASE |
78217-78J10-000 |
— | ||
|
2
|
2
78217-78J20-000
COVER,LUGGAGE CARRIER
UPPER,UPPER SUNROOF |
78217-78J20-000 |
— | ||
|
3
|
3
78227-78J10-000
COVER,LUGGAGE CARRIER
BASE |
78227-78J10-000 |
— | ||
|
3
|
3
78227-78J20-000
COVER,LUGGAGE CARRIER
UPPER,UPPER SUNROOF |
78227-78J20-000 |
— | ||
|
4
|
4
78210-78J11-000
RAIL,LUGGAGE CARRIER
BASE |
78210-78J11-000 |
— | ||
|
4
|
4
78210-78J20-000
RAIL,LUGGAGE CARRIER
UPPER,UPPER SUNROOF |
78210-78J20-000 |
— | ||
|
5
|
5
78215-78J00-000
CLIP
|
78215-78J00-000 |
— | ||
|
6
|
6
78220-78J11-000
RAIL,LUGGAGE CARRIER
BASE |
78220-78J11-000 |
— | ||
|
6
|
6
78220-78J20-000
RAIL,LUGGAGE CARRIER
UPPER,UPPER SUNROOF |
78220-78J20-000 |
— | ||
|
7
|
7
78215-78J00-000
CLIP
|
78215-78J00-000 |
— | ||
|
8
|
8
78216-78J10-000
COVER,LUGGAGE CARRIER
BASE |
78216-78J10-000 |
— | ||
|
8
|
8
78216-78J20-000
COVER,LUGGAGE CARRIER
UPPER,UPPER SUNROOF |
78216-78J20-000 |
— | ||
|
9
|
9
78226-78J10-000
COVER,LUGGAGE CARRIER
BASE |
78226-78J10-000 |
— | ||
|
9
|
9
78226-78J20-000 COVER,LUGGAGE CARRIERUPPER,UPPER SUNROOF |
78226-78J20-000 |
US $76.54 |
||
|
10
|
10
56118-78J00-000
NUT
BASE |
56118-78J00-000 |
— | ||
|
10
|
10
78214-78J00-000
RING,ROOF RAIL
UPPER,UPPER SUNROOF |
78214-78J00-000 |
— | ||
|
11
|
11
78214-78J00-000
RING,ROOF RAIL
|
78214-78J00-000 |
— |
