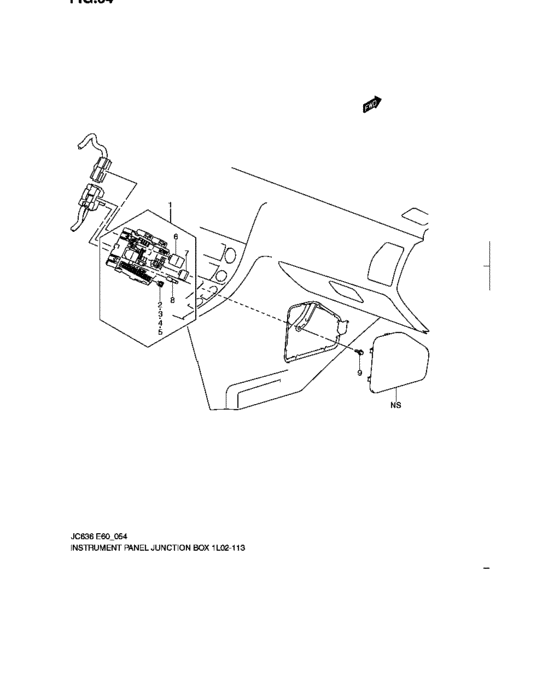

Instrument panel junction box (INSTRUMENT PANEL JUNCTION BOX) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36710-78J04-000
Box assy, junction
N/POWER SEAT |
36710-78J04-000 |
— | ||
| replacement | |||||
|
1
|
1
36710-78J05-000
BOX ASSY,JUNCTION
N/POWER SEAT |
36710-78J05-000 |
— | ||
|
1
|
1
36710-78J13-000
Box assy, junction
W/POWER SEAT |
36710-78J13-000 |
— | ||
| replacement | |||||
|
1
|
1
36710-78J14-000
BOX ASSY,JUNCTION
W/POWER SEAT |
36710-78J14-000 |
— | ||
|
2
|
2
30001-78J00-25A
FUSE,25A
|
30001-78J00-25A |
— | ||
|
3
|
3
30001-78J00-10A
FUSE,10A
|
30001-78J00-10A |
— | ||
|
4
|
4
30001-78J10-15A
FUSE,15A
|
30001-78J10-15A |
— | ||
|
5
|
5
30001-78J01-20A
FUSE,20A
|
30001-78J01-20A |
— | ||
|
6
|
6
38860-78J01-000 RELAY |
38860-78J01-000 |
US $10.64 |
||
|
7
|
7
38860-78J40-000
BREAKER
|
38860-78J40-000 |
— | ||
|
8
|
8
30010-78J10-000
PULLER
|
30010-78J10-000 |
— | ||
|
9
|
9
71719-78J00-000
BOLT,M4.2X1.41X20
|
71719-78J00-000 |
— | ||
