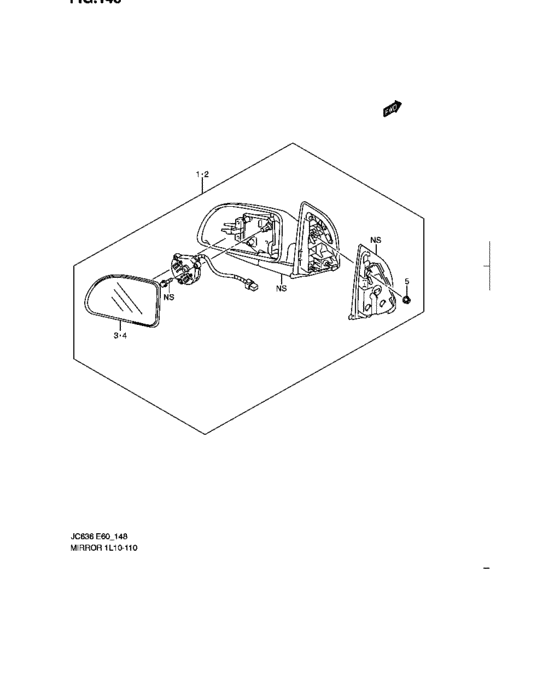

Mirror (MIRROR) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-78J20-000 MIRROR,OUT RR VIEW,RN/HEATER,PAINTED |
84701-78J20-000 |
US $633.60 |
||
|
1
|
1
84701-78J01-000
Mirror, out rear view rh
N/HEATER,BLACK |
84701-78J01-000 |
— | ||
|
1
|
1
84701-78J40-000
MIRROR,OUT RR VIEW,R
W/HEATER |
84701-78J40-000 |
— | ||
|
2
|
2
84702-78J20-000
MIRROR,OUT RR VIEW,L
N/HEATER,PAINTED |
84702-78J20-000 |
— | ||
|
2
|
2
84702-78J02-000
MIRROR,OUT RR VIEW,L
N/HEATER,BLACK |
84702-78J02-000 |
— | ||
|
2
|
2
84702-78J30-000
MIRROR,OUT RR VIEW,L
W/HEATER |
84702-78J30-000 |
— | ||
|
3
|
3
84730-78J00-000 GLASS,OUT RR VIEW MIRROR,RN/HEATER |
84730-78J00-000 |
US $119.23 |
||
|
3
|
3
84730-78J20-000
GLASS,OUT RR VIEW MIRROR,R
W/HEATER |
84730-78J20-000 |
— | ||
|
4
|
4
84740-78J00-000
GLASS,OUT RR VIEW MIRROR,L
N/HEATER |
84740-78J00-000 |
— | ||
|
4
|
4
84740-78J10-000
GLASS,OUT RR VIEW MIRROR,L
W/HEATER |
84740-78J10-000 |
— | ||
|
5
|
5
56118-78J00-000
NUT
|
56118-78J00-000 |
— |
