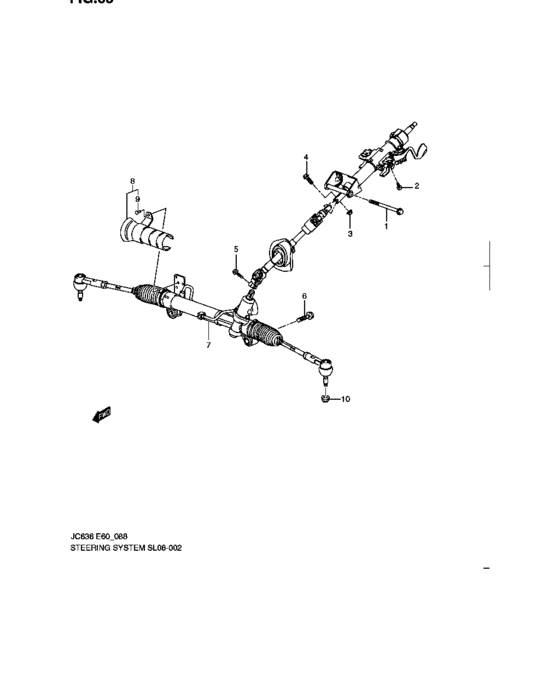

Steering system (STEERING SYSTEM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48219-78J00-000
Bolt
|
48219-78J00-000 |
— | ||
|
2
|
2
89224-78J01-000
Bolt
|
89224-78J01-000 |
— | ||
|
3
|
3
48213-78J00-000
NUT
|
48213-78J00-000 |
— | ||
|
4
|
4
48211-78J01-000
Bolt
|
48211-78J01-000 |
— | ||
|
5
|
5
48215-78J00-000
Bolt
|
48215-78J00-000 |
— | ||
|
6
|
6
48590-78J10-000
Bolt
|
48590-78J10-000 |
— | ||
|
7
|
7
48500-78J04-000
BOX ASSY,STEERING GEAR
|
48500-78J04-000 |
— | ||
|
8
|
8
45836-78J01-000
COVER,STRG GEAR
|
45836-78J01-000 |
— | ||
|
9
|
9
45839-78J00-000
CLIP
|
45839-78J00-000 |
— | ||
|
10
|
10
48837-78J00-000
NUT
|
48837-78J00-000 |
— |
