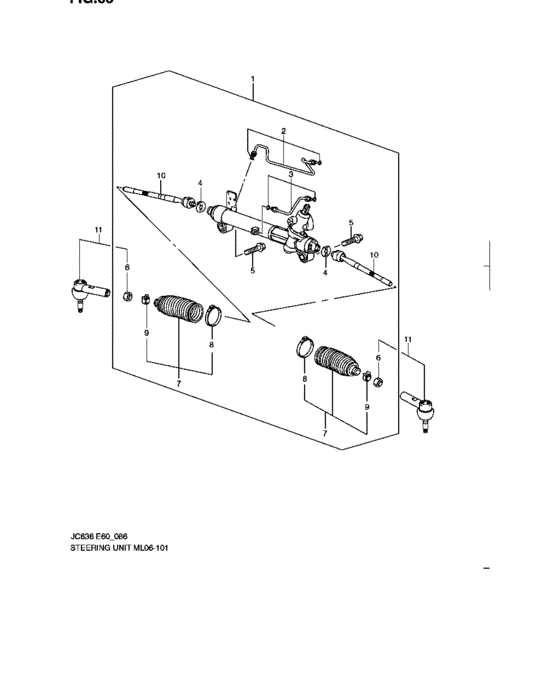

Steering unit (STEERING UNIT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48500-78J04-000
BOX ASSY,STEERING GEAR
|
48500-78J04-000 |
— | ||
|
2
|
2
48581-78J00-000
PIPE,STEERING GEAR,R
|
48581-78J00-000 |
— | ||
|
3
|
3
48582-78J00-000
PIPE,STEERING GEAR,L
|
48582-78J00-000 |
— | ||
|
4
|
4
48841-78J00-000
WASHER
|
48841-78J00-000 |
— | ||
|
5
|
5
48590-78J00-000
Bolt
|
48590-78J00-000 |
— | ||
|
6
|
6
48837-78J00-000
NUT
|
48837-78J00-000 |
— | ||
|
7
|
7
48570-78J00-000 BOOT SET,STRG GEAR BOX |
48570-78J00-000 |
US $49.31 |
||
|
8
|
8
48575-78J00-000
CLAMP,STRG BOOT
|
48575-78J00-000 |
— | ||
|
9
|
9
48573-78J00-000
CLIP,STRG BOOT
|
48573-78J00-000 |
— | ||
|
10
|
10
48830-78J00-000 TIE-ROD,STEERING |
48830-78J00-000 |
US $117.02 |
||
|
11
|
11
48810-78J00-000 END SET,STEERING TIE-ROD |
48810-78J00-000 |
US $100.94 |
