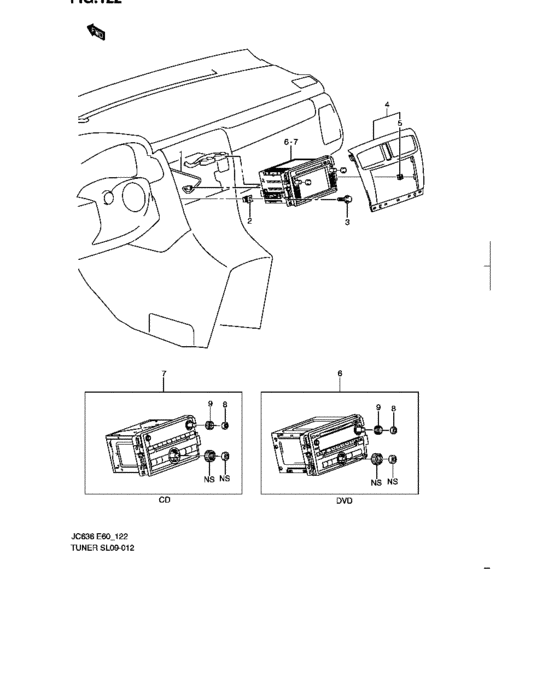

Tuner (TUNER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39270-78J00-000
FEEDER,ANT I/P
W/CD TUNER/DVD TUNER |
39270-78J00-000 |
— | ||
|
1
|
1
39270-78J10-000
FEEDER,ANT I/P
|
39270-78J10-000 |
— | ||
|
2
|
2
39109-78J00-000
NUT,M4.2X1.41
|
39109-78J00-000 |
— | ||
|
3
|
3
73114-78J00-000
BOLT,M4.2X1.41X25
|
73114-78J00-000 |
— | ||
|
4
|
4
73821-78J00-000
GARNISH,CENTER
|
73821-78J00-000 |
— | ||
|
5
|
5
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
6
|
6
39101-78J41-000
TUNER ASSY,AM/FM CD DVD
07 MODEL,08 MODEL,DVD TUNER |
39101-78J41-000 |
— | ||
|
6
|
6
39101-78JG0-000
TUNER,AM/FM DVD MP3
09 MODEL,DVD TUNER |
39101-78JG0-000 |
— | ||
|
7
|
7
39101-78J50-000
TUNER ASSY,AM/FM CD N/MP3
07 MODEL,CD TUNER,N/MP3 |
39101-78J50-000 |
— | ||
|
7
|
7
39101-78J74-000
TUNER ASSY,AM/FM CD N/MP3
08 MODEL,CD TUNER,N/MP3 |
39101-78J74-000 |
— | ||
|
7
|
7
39101-78JE0-000
TUNER,AM/FM CD N/MP3
09 MODEL,CD TUNER,N/MP3 |
39101-78JE0-000 |
— | ||
|
7
|
7
39101-78JC2-000
TUNER ASSY,AM/FM 6CD W/MP3
6CD TUNER,W/MP3 |
39101-78JC2-000 |
— | ||
|
8
|
8
39106-78J00-000
BUTTON,PUSH
W/CD TUNER |
39106-78J00-000 |
— | ||
|
8
|
8
39106-78J10-000
BUTTON,PUSH
W/DVD TUNER |
39106-78J10-000 |
— | ||
|
9
|
9
39107-78J00-000
KNOB,CONT
W/CD TUNER |
39107-78J00-000 |
— | ||
|
9
|
9
39107-78J10-000
KNOB,CONT
W/DVD TUNER |
39107-78J10-000 |
— |
