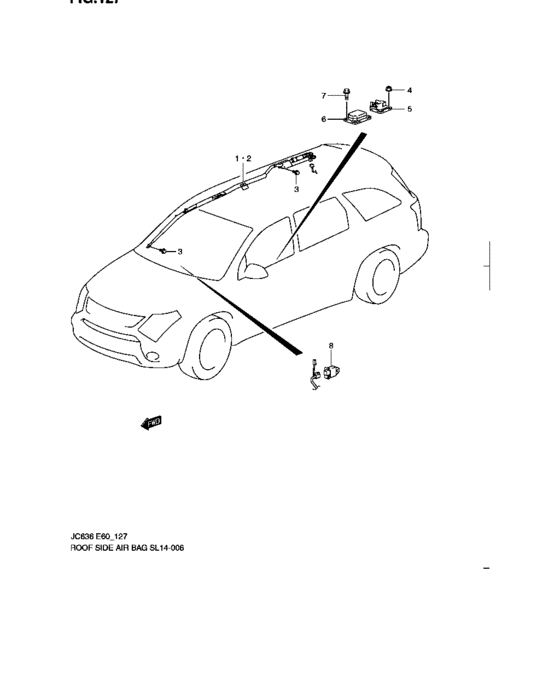

Roof side air bag (ROOF SIDE AIR BAG) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76480-78J13-000
MODULE,ROOF SIDE A/B,R
|
76480-78J13-000 |
— | ||
|
2
|
2
76490-78J13-000
MODULE,ROOF SIDE A/B,L
|
76490-78J13-000 |
— | ||
|
3
|
3
76487-78J00-000
Bolt
|
76487-78J00-000 |
— | ||
|
4
|
4
22911-78J00-000
NUT
|
22911-78J00-000 |
— | ||
|
5
|
5
38930-78J02-000 SENSOR ASSY,FLOOR07 MODEL |
38930-78J02-000 |
US $862.40 |
||
|
5
|
5
38930-78J10-000
Sensor assy,floor
08 MODEL,09 MODEL |
38930-78J10-000 |
— | ||
| replacement | |||||
|
5
|
5
38930-78J02-000 SENSOR ASSY,FLOOR08 MODEL,09 MODEL |
38930-78J02-000 |
US $862.40 |
||
|
6
|
6
38910-78J02-000 CONTROLLER ASSY,AIR BAG |
38910-78J02-000 |
US $862.40 |
||
|
7
|
7
38919-78J00-000
Bolt
|
38919-78J00-000 |
— | ||
|
8
|
8
38920-78J00-000
SENSOR ASSY
|
38920-78J00-000 |
— | ||
