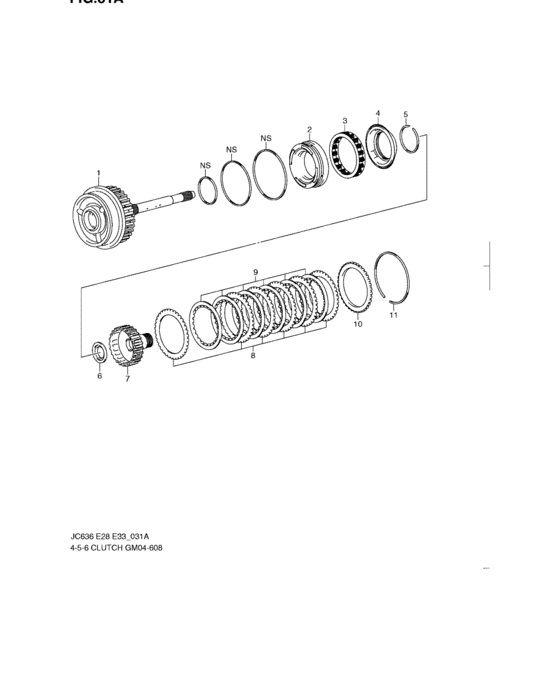

4-5-6 clutch (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-78J20-000
HOUSING,3-5-REV&4-5-6 CLUTCH
|
24111-78J20-000 |
— | ||
|
2
|
2
26921-78J20-000
PISTON,4-5-6 CLUTCH
|
26921-78J20-000 |
— | ||
|
3
|
3
26923-78J20-000
SPRING,4-5-6 CLUTCH
|
26923-78J20-000 |
— | ||
|
4
|
4
26922-78J20-000
DAM,4-5-6 CLUTCH
|
26922-78J20-000 |
— | ||
|
5
|
5
26924-78J20-000
RING,4-5-6 CLUTCH
|
26924-78J20-000 |
— | ||
|
6
|
6
26925-78J20-000
BEARING,4-5-6 CLUTCH
|
26925-78J20-000 |
— | ||
|
7
|
7
26926-78J20-000
HUB,REACTION CARRIER
|
26926-78J20-000 |
— | ||
|
8
|
8
26912-78J20-000
PLATE,4-5-6 CLUTCH
|
26912-78J20-000 |
— | ||
|
9
|
9
26911-78J20-000
PLATE,4-5-6 CLUTCH FRICTION
|
26911-78J20-000 |
— | ||
|
10
|
10
26913-78J20-000
PLATE,4-5-6 CLUTCH BKG
|
26913-78J20-000 |
— | ||
|
11
|
11
26915-78J20-000
RING,4-5-6 CLUTCH BRAKING
|
26915-78J20-000 |
— |
