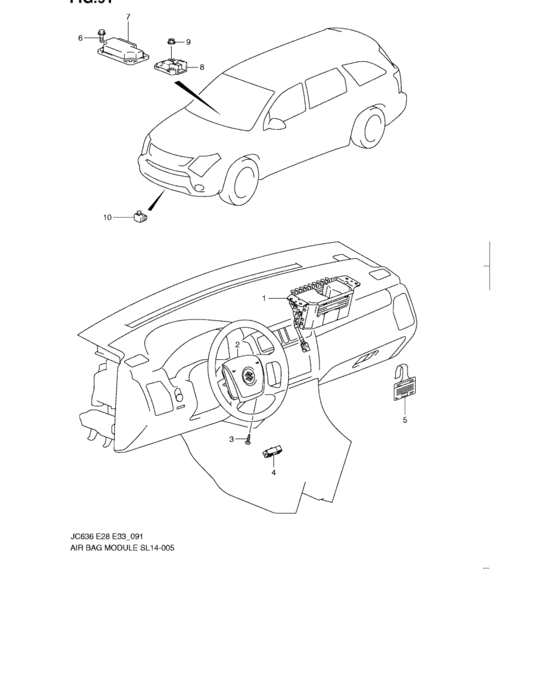

Air bag module (AIR BAG MODULE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73920-78J02-000
MODULE,PASS A/B
|
73920-78J02-000 |
— | ||
|
2
|
2
48150-78J02-000
MODULE ASSY,A/B
|
48150-78J02-000 |
— | ||
|
3
|
3
48159-78J01-000
Bolt
|
48159-78J01-000 |
— | ||
|
4
|
4
34600-78J00-000
SWITCH,DRIVE INFORMATION CTR
California |
34600-78J00-000 |
— | ||
|
4
|
4
34600-78J10-000
SWITCH,DRIVE INFORMATION CTR
Canada |
34600-78J10-000 |
— | ||
|
5
|
5
79131-78J00-000
TAG,INFL RST I/P MDL CAUTION
|
79131-78J00-000 |
— | ||
|
6
|
6
38919-78J00-000
Bolt
|
38919-78J00-000 |
— | ||
|
7
|
7
38910-78J02-000 CONTROLLER ASSY,AIR BAG |
38910-78J02-000 |
US $862.40 |
||
|
8
|
8
38930-78J02-000 SENSOR ASSY,FLOOR07 MODEL |
38930-78J02-000 |
US $862.40 |
||
|
8
|
8
38930-78J10-000
Sensor assy,floor
08 MODEL,09 MODEL |
38930-78J10-000 |
— | ||
| replacement | |||||
|
8
|
8
38930-78J02-000 SENSOR ASSY,FLOOR08 MODEL,09 MODEL |
38930-78J02-000 |
US $862.40 |
||
|
9
|
9
22911-78J00-000
NUT
|
22911-78J00-000 |
— | ||
|
10
|
10
38920-78J00-000
SENSOR ASSY
|
38920-78J00-000 |
— | ||
