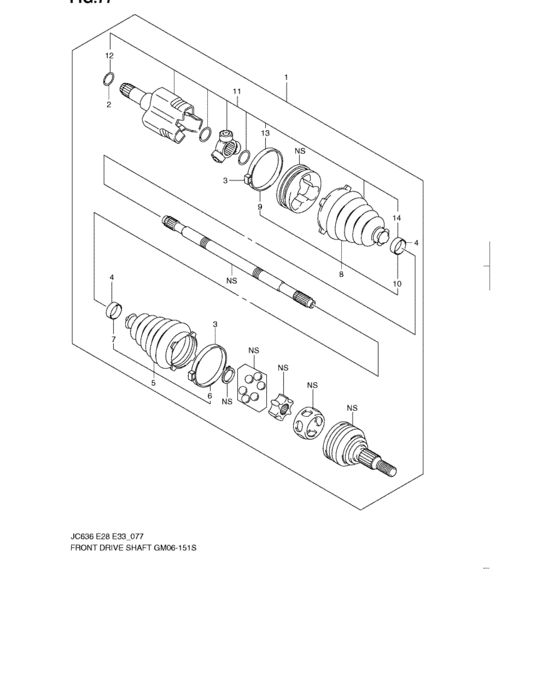

Front drive shaft (FRONT DRIVE SHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-78J01-000 SHAFT ASSY,FRONT DRIVE,R |
44101-78J01-000 |
US $443.52 |
||
|
1
|
1
44102-78J01-000 SHAFT ASSY,FRONT DRIVE,L |
44102-78J01-000 |
from US $591.36 |
||
|
2
|
2
44111-78J01-000
RING,SNAP
|
44111-78J01-000 |
— | ||
|
3
|
3
44122-78J00-000
CLAMP,BOOT
|
44122-78J00-000 |
— | ||
|
4
|
4
44123-78J00-000
CLAMP,BOOT SMALL
|
44123-78J00-000 |
— | ||
|
5
|
5
44118-78J01-000
Boot set,front wheel side
|
44118-78J01-000 |
— | ||
| replacement | |||||
|
5
|
5
44118-78J02-000
BOOT SET,FR WHEEL SIDE
|
44118-78J02-000 |
— | ||
|
6
|
6
44122-78J00-000
CLAMP,BOOT
|
44122-78J00-000 |
— | ||
|
7
|
7
44123-78J00-000
CLAMP,BOOT SMALL
|
44123-78J00-000 |
— | ||
|
8
|
8
44119-78J01-000
BOOT SET,FR DIFF SIDE
|
44119-78J01-000 |
— | ||
|
9
|
9
44122-78J00-000
CLAMP,BOOT
|
44122-78J00-000 |
— | ||
|
10
|
10
44123-78J00-000
CLAMP,BOOT SMALL
|
44123-78J00-000 |
— | ||
|
11
|
11
44110-78J00-000
JOINT SET,DIFF SIDE,R
|
44110-78J00-000 |
— | ||
|
11
|
11
44110-78J10-000
JOINT SET,DIFF SIDE,L
|
44110-78J10-000 |
— | ||
|
12
|
12
44111-78J01-000
RING,SNAP
|
44111-78J01-000 |
— | ||
|
13
|
13
44122-78J00-000
CLAMP,BOOT
|
44122-78J00-000 |
— | ||
|
14
|
14
44123-78J00-000
CLAMP,BOOT SMALL
|
44123-78J00-000 |
— | ||
