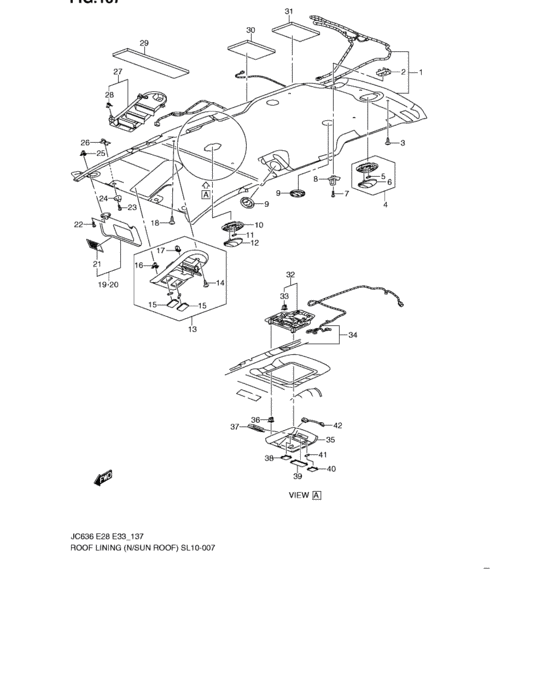

Roof lining (N/SUN ROOF) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-78J00-000
Headlining assy, roof
07 MODEL,08 MODEL,09 MODEL,N/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J00-000 |
— | ||
| replacement | |||||
|
1
|
1
78110-78J01-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,09 MODEL,N/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J01-000 |
— | ||
|
1
|
1
78110-78J10-000
Headlining assy, roof
07 MODEL,08 MODEL,09 MODEL,N/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J10-000 |
— | ||
| replacement | |||||
|
1
|
1
78110-78J11-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,09 MODEL,N/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J11-000 |
— | ||
|
1
|
1
78110-78J20-000
Headlining assy, roof
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J20-000 |
— | ||
| replacement | |||||
|
1
|
1
78110-78JG1-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78JG1-000 |
— | ||
|
1
|
1
78110-78J30-000
Headlining assy, roof
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78J30-000 |
— | ||
| replacement | |||||
|
1
|
1
78110-78JH1-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78JH1-000 |
— | ||
|
1
|
1
78110-78J40-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,W/NAVI |
78110-78J40-000 |
— | ||
| replacement | |||||
|
1
|
1
78110-78JJ0-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,W/NAVI |
78110-78JJ0-000 |
— | ||
|
1
|
1
78110-78J50-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,W/NAVI |
78110-78J50-000 |
— | ||
|
1
|
1
78110-78JG1-000
HEADLINING ASSY,ROOF
09 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78JG1-000 |
— | ||
|
1
|
1
78110-78JH1-000
HEADLINING ASSY,ROOF
09 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,N/NAVI |
78110-78JH1-000 |
— | ||
|
1
|
1
78110-78JJ0-000
HEADLINING ASSY,ROOF
09 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,W/NAVI |
78110-78JJ0-000 |
— | ||
|
1
|
1
78110-78JK0-000
Headlining assy, roof
09 MODEL,W/REAR AIR CON,N/REAR DVD DISPLAY,W/NAVI |
78110-78JK0-000 |
— | ||
|
2
|
2
78115-78J01-000
RETAINER
|
78115-78J01-000 |
— | ||
|
3
|
3
78116-78J00-000
CLIP
|
78116-78J00-000 |
— | ||
|
3
|
3
78116-78J10-000
CLIP
|
78116-78J10-000 |
— | ||
|
4
|
4
36210-78J20-000
LAMP ASSY,RR(GRAY)
|
36210-78J20-000 |
— | ||
|
4
|
4
36210-78J30-000
Housing, cargo lamp
|
36210-78J30-000 |
— | ||
|
5
|
5
36211-78J10-000
BULB
|
36211-78J10-000 |
— | ||
|
6
|
6
36212-78J10-000
LENS
|
36212-78J10-000 |
— | ||
|
7
|
7
36213-78J00-000
SCREW
|
36213-78J00-000 |
— | ||
|
8
|
8
36214-78J00-000 HOOK,COAT |
36214-78J00-000 |
US $22.45 |
||
|
8
|
8
36214-78J10-000
HOOK,COAT
|
36214-78J10-000 |
— | ||
|
9
|
9
73660-78J00-000
LOUVER,ROOF VENT
|
73660-78J00-000 |
— | ||
|
9
|
9
73650-78J02-000
Deflector
|
73650-78J02-000 |
— | ||
| replacement | |||||
|
9
|
9
73650-78J03-000
DEFLECTOR
|
73650-78J03-000 |
— | ||
|
10
|
10
36210-78J00-000
LAMP
|
36210-78J00-000 |
— | ||
|
10
|
10
36210-78J10-000
LAMP
|
36210-78J10-000 |
— | ||
|
11
|
11
36211-78J00-000
BULB
|
36211-78J00-000 |
— | ||
|
12
|
12
36212-78J01-000 LENS |
36212-78J01-000 |
US $11.56 |
||
|
13
|
13
39921-78J21-000
CONSOLE,RR ROOF
N/NAVI |
39921-78J21-000 |
— | ||
|
13
|
13
39921-78J60-000
CONSOLE,ROOF
N/NAVI |
39921-78J60-000 |
— | ||
|
13
|
13
39921-78J41-000
BOX,OVER HEAD
W/NAVI |
39921-78J41-000 |
— | ||
|
13
|
13
39921-78J51-000
BOX,OVER HEAD
W/NAVI |
39921-78J51-000 |
— | ||
|
14
|
14
73319-78J01-000
SCREW
|
73319-78J01-000 |
— | ||
|
15
|
15
39925-78J00-000
LENS
|
39925-78J00-000 |
— | ||
|
16
|
16
39926-78J00-000
CLIP
|
39926-78J00-000 |
— | ||
|
17
|
17
39927-78J00-000
LATCH
|
39927-78J00-000 |
— | ||
|
18
|
18
78116-78J30-000
CLIP
|
78116-78J30-000 |
— | ||
|
18
|
18
78116-78J20-000
CLIP
|
78116-78J20-000 |
— | ||
|
19
|
19
84802-78J01-000
SUNVISOR,L
|
84802-78J01-000 |
— | ||
|
19
|
19
84802-78J11-000
SUNVISOR,L
|
84802-78J11-000 |
— | ||
|
20
|
20
84801-78J01-000
SUNVISOR,R
|
84801-78J01-000 |
— | ||
|
20
|
20
84801-78J11-000
SUNVISOR,L
|
84801-78J11-000 |
— | ||
|
21
|
21
79141-78J00-000
LABEL,INFL RST SYS CAUTION
ENGLISH/SPANISH |
79141-78J00-000 |
— | ||
|
21
|
21
79141-78J20-000
Label
ENGLISH/FRENCH |
79141-78J20-000 |
— | ||
|
22
|
22
84852-78J00-000
SCREW
|
84852-78J00-000 |
— | ||
| replacement | |||||
|
22
|
22
84852-78J01-000
Screw
|
84852-78J01-000 |
— | ||
|
23
|
23
84852-78J00-000
SCREW
|
84852-78J00-000 |
— | ||
| replacement | |||||
|
23
|
23
84852-78J01-000
Screw
|
84852-78J01-000 |
— | ||
|
24
|
24
84851-78J00-000
HOLDER,SUNVISOR
|
84851-78J00-000 |
— | ||
| replacement | |||||
|
24
|
24
84851-78J21-000
HOLDER,SUNVISOR
|
84851-78J21-000 |
— | ||
|
24
|
24
84851-78J10-000
HOLDER,SUNVISOR
|
84851-78J10-000 |
— | ||
| replacement | |||||
|
24
|
24
84851-78J11-000
Support-s/s (ca
|
84851-78J11-000 |
— | ||
|
25
|
25
84853-78J00-000 RETAINER |
84853-78J00-000 |
US $35.14 |
||
|
26
|
26
84854-78J00-000
RETAINER
|
84854-78J00-000 |
— | ||
|
27
|
27
39928-78J00-000
RETAINER
|
39928-78J00-000 |
— | ||
|
28
|
28
39926-78J00-000
CLIP
|
39926-78J00-000 |
— | ||
|
29
|
29
78112-78J00-000
SILENCER,ROOF
|
78112-78J00-000 |
— | ||
|
30
|
30
78112-78J00-000
SILENCER,ROOF
|
78112-78J00-000 |
— | ||
|
31
|
31
78112-78J00-000
SILENCER,ROOF
|
78112-78J00-000 |
— | ||
|
32
|
32
39922-78J02-000
BRACKET,RR ROOF CONSOLE
|
39922-78J02-000 |
— | ||
|
33
|
33
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
34
|
34
78110-78J60-000
Headlining assy,roof
07 MODEL,08 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78J60-000 |
— | ||
| replacement | |||||
|
34
|
34
78110-78JL0-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78JL0-000 |
— | ||
|
34
|
34
78110-78J70-000
Headlining assy,roof
07 MODEL,08 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78J70-000 |
— | ||
| replacement | |||||
|
34
|
34
78110-78JM0-000
HEADLINING ASSY,ROOF
07 MODEL,08 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78JM0-000 |
— | ||
|
34
|
34
78110-78J80-000
PANEL,LINING
07 MODEL,08 MODEL,N/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78J80-000 |
— | ||
|
34
|
34
78110-78J90-000
PANEL,LINING
07 MODEL,08 MODEL,N/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78J90-000 |
— | ||
|
34
|
34
78110-78JL0-000
HEADLINING ASSY,ROOF
09 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78JL0-000 |
— | ||
|
34
|
34
78110-78JM0-000
HEADLINING ASSY,ROOF
09 MODEL,W/REAR AIR CON,W/REAR DVD DISPLAY,N/NAVI |
78110-78JM0-000 |
— | ||
|
35
|
35
36210-78J41-000
CONSOLE
|
36210-78J41-000 |
— | ||
|
35
|
35
36210-78J51-000
CONSOLE
|
36210-78J51-000 |
— | ||
|
36
|
36
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
36
|
36
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
37
|
37
39940-78J00-000
Module, audio system
LABELED PN 15095547 |
39940-78J00-000 |
— | ||
| replacement | |||||
|
37
|
37
39940-78J10-000
MODULE,AUDIO SYSTEM
LABELED PN 15095547 |
39940-78J10-000 |
— | ||
|
37
|
37
39940-78J10-000
MODULE,AUDIO SYSTEM
LABELED PN 25835387 |
39940-78J10-000 |
— | ||
|
38
|
38
39922-78J20-000
LENS
|
39922-78J20-000 |
— | ||
|
39
|
39
39922-78J30-000
LENS
|
39922-78J30-000 |
— | ||
|
40
|
40
39922-78J10-000
LENS
|
39922-78J10-000 |
— | ||
|
41
|
41
39923-78J20-000
BULB
|
39923-78J20-000 |
— | ||
|
42
|
42
39923-78J00-000
SWITCH
|
39923-78J00-000 |
— | ||
|
42
|
42
39923-78J10-000
SWITCH
|
39923-78J10-000 |
— | ||
