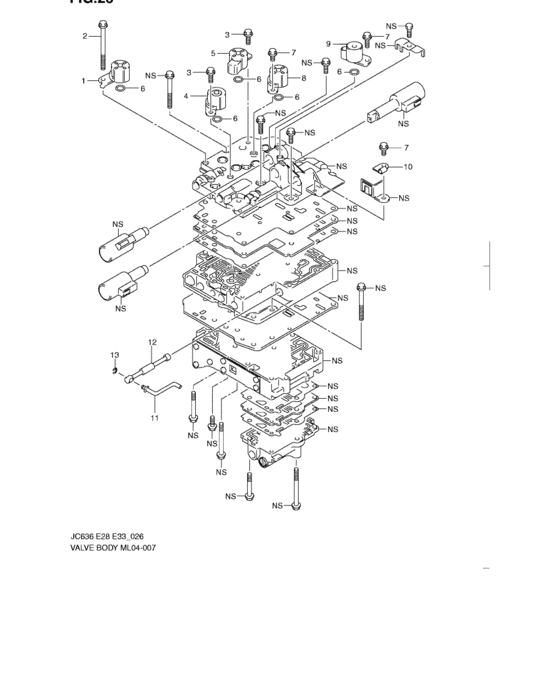

Valve body (07,08 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26581-78J00-000 VALVE,SOLENOID |
26581-78J00-000 |
US $82.80 |
||
|
2
|
2
29971-78J00-000
BOLT,5X62
|
29971-78J00-000 |
— | ||
|
3
|
3
29972-78J00-000
BOLT,5X28
|
29972-78J00-000 |
— | ||
|
4
|
4
26582-78J00-000 VALVE,SOLENOID |
26582-78J00-000 |
US $86.85 |
||
|
5
|
5
26583-78J00-000
VALVE,SOLENOID
|
26583-78J00-000 |
— | ||
|
6
|
6
29711-78J00-000
O-RING,SOLENOID VALVE
|
29711-78J00-000 |
— | ||
|
7
|
7
29973-78J00-000
BOLT,5X10
|
29973-78J00-000 |
— | ||
|
8
|
8
26584-78J00-000 VALVE,SOLENOID |
26584-78J00-000 |
US $76.54 |
||
|
9
|
9
26585-78J00-000 VALVE,SOLENOID |
26585-78J00-000 |
US $76.91 |
||
|
10
|
10
26510-78J00-000
CLIP,HARN
|
26510-78J00-000 |
— | ||
|
11
|
11
26586-78J00-000
LINK,MANUAL VALVE
|
26586-78J00-000 |
— | ||
|
12
|
12
26587-78J00-000
VALVE,MANUAL
|
26587-78J00-000 |
— | ||
|
13
|
13
26588-78J00-000
RETAINER,MANUAL VALVE LINK
|
26588-78J00-000 |
— |
